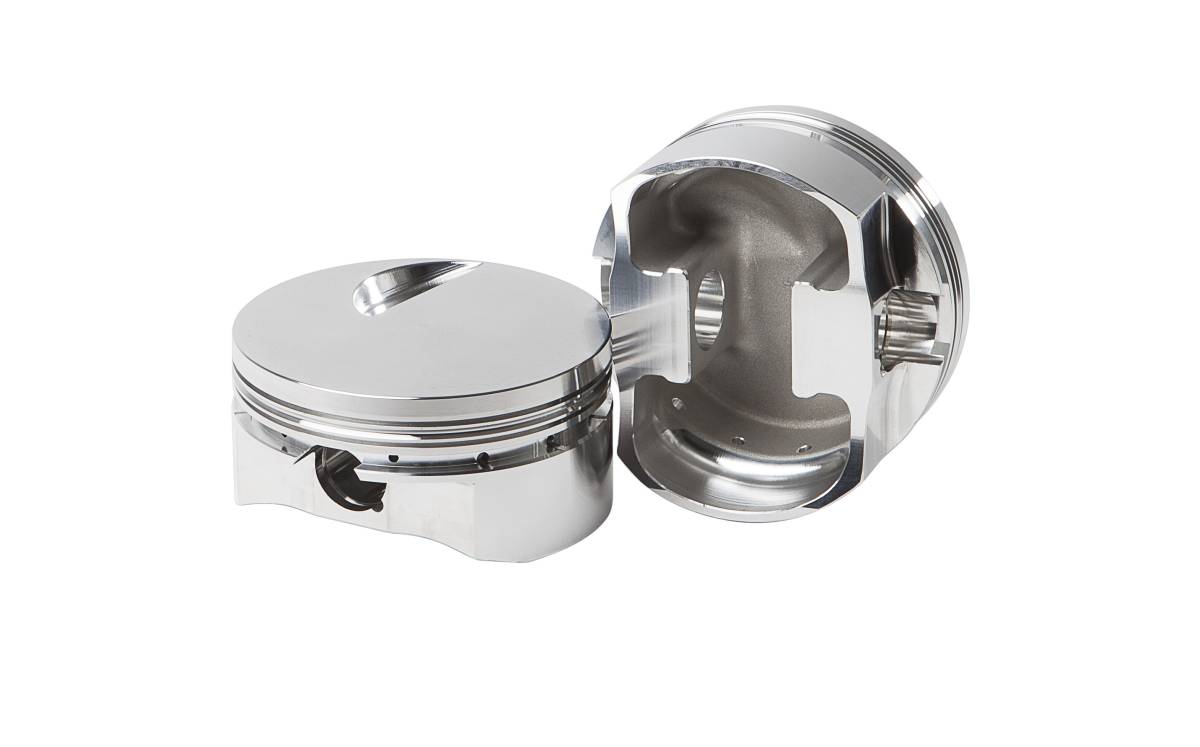

Diamond Pistons 12018-8 Big Block Chevy 24 & 26 Street Strip Flat Top Series
Big Block Chevy 24/26 Flat Top
12018-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,481.08
Description
| Product Specifications | Details |
|---|---|
| Item Number | 12018-8 |
| Engine Make | Chevrolet |
| Bore | 4.320 |
| Stroke | 4.250 |
| Rod | 6.135 |
| Comp Height | 1.520 |
| Weight | 612 |
| Pin | .990 x 2.930 |
| CC | -3.0cc |
| Comp Ratio | 8.5 |
| Cylinder Head Chamber CC | 118 |
| Ring Thickness | 1/16 x 1/16 x 3/16 |
| VP Intake Depth | 0.310 |
| VP Exhaust Depth | 0.000 |
| Cylinders | 8 |
| Barcode ID | 193564379702 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Big Block Chevy 24/26 Flat Top |
| Pins Included | Y |
| Pin Part# | G9902930185 |
| Rings Included | Y |
| Ring Part# | 09024320 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015106-32 |
| Country of Origin | USA |
Details
- 12018-8
- 12018-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
