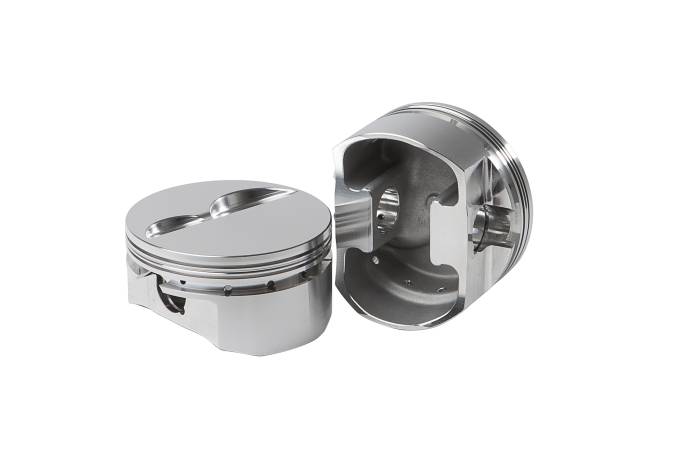

Diamond Pistons 11100-8 Small Block Chevy 23 Street Strip Flat Top Series
Small Block Chevy Flat Top
11100-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,131.61
Description
| Product Specifications | Details |
|---|---|
| Item Number | 11100-8 |
| Engine Make | Chevrolet |
| Bore | 4.020 |
| Stroke | 3.480 |
| Rod | 5.700 |
| Comp Height | 1.550 |
| Weight | 446 |
| Pin | .927 x 2.500 |
| CC | -4.0cc |
| Comp Ratio | 10.1 |
| Cylinder Head Chamber CC | 64 |
| Ring Thickness | 1/16 x 1/16 x 3/16 |
| VP Intake Depth | 0.295 |
| VP Exhaust Depth | 0.200 |
| Cylinders | 8 |
| Barcode ID | 686162201716 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Small Block Chevy Flat Top |
| Pins Included | Y |
| Pin Part# | G9272500155 |
| Rings Included | Y |
| Ring Part# | 09024020 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015103-16 |
| Country of Origin | USA |
Details
- 11100-8
- 11100-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
