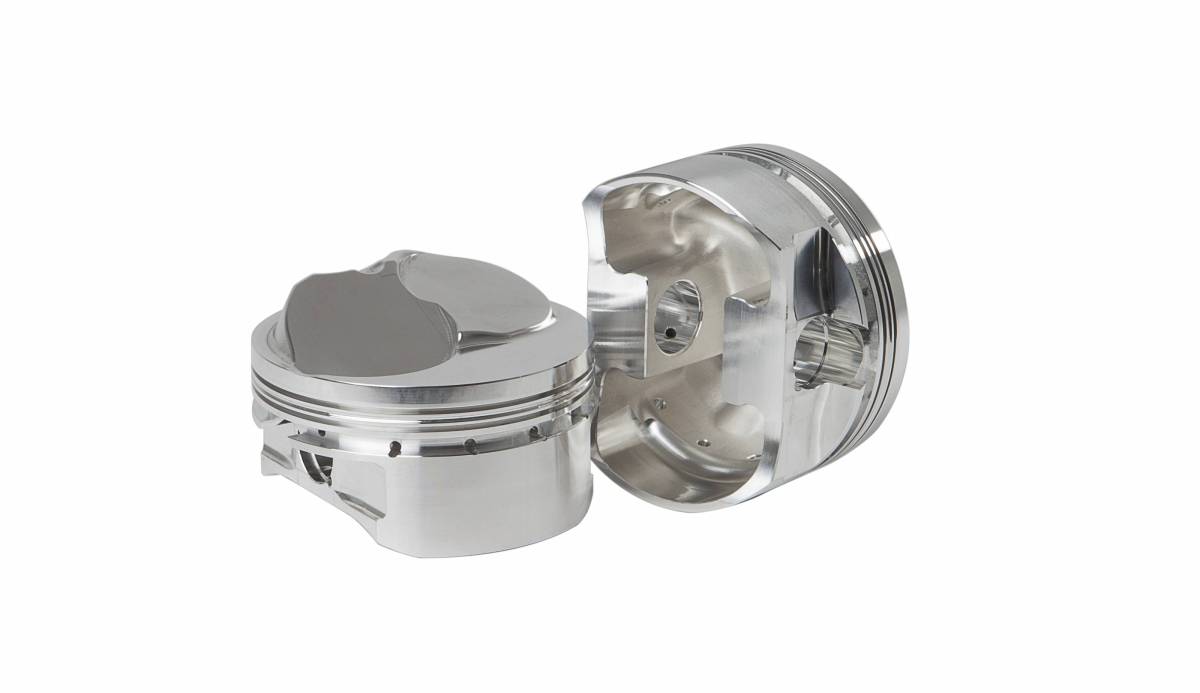

Diamond Pistons 12397-8 Big Block Chevy 24 & 26 Pro Dome Series
Big Block Chevy 24/26 Pro Dome
12397-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Dome & Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,616.81
Description
| Product Specifications | Details |
|---|---|
| Item Number | 12397-8 |
| Engine Make | Chevrolet |
| Bore | 4.625 |
| Stroke | 4.375 |
| Rod | 6.535 |
| Comp Height | 1.068 |
| Weight | 651 |
| Pin | .990 x 2.930 |
| CC | 42.0cc |
| Comp Ratio | 14.2 |
| Cylinder Head Chamber CC | 118 |
| Ring Thickness | .043 x .043 x 3.0mm |
| VP Intake Depth | 0.320 |
| VP Exhaust Depth | -0.130 |
| Cylinders | 8 |
| Barcode ID | 686162206988 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Big Block Chevy 24/26 Pro Dome |
| Pins Included | Y |
| Pin Part# | G9902930185 |
| Rings Included | Y |
| Ring Part# | 09224625 |
| Rails Included | Y |
| Support Rail Part# | 019010600-8 |
| Locks Included | Y |
| Lock Ring Part# | 015106-32 |
| Country of Origin | USA |
Details
- 12397-8
- 12397-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
