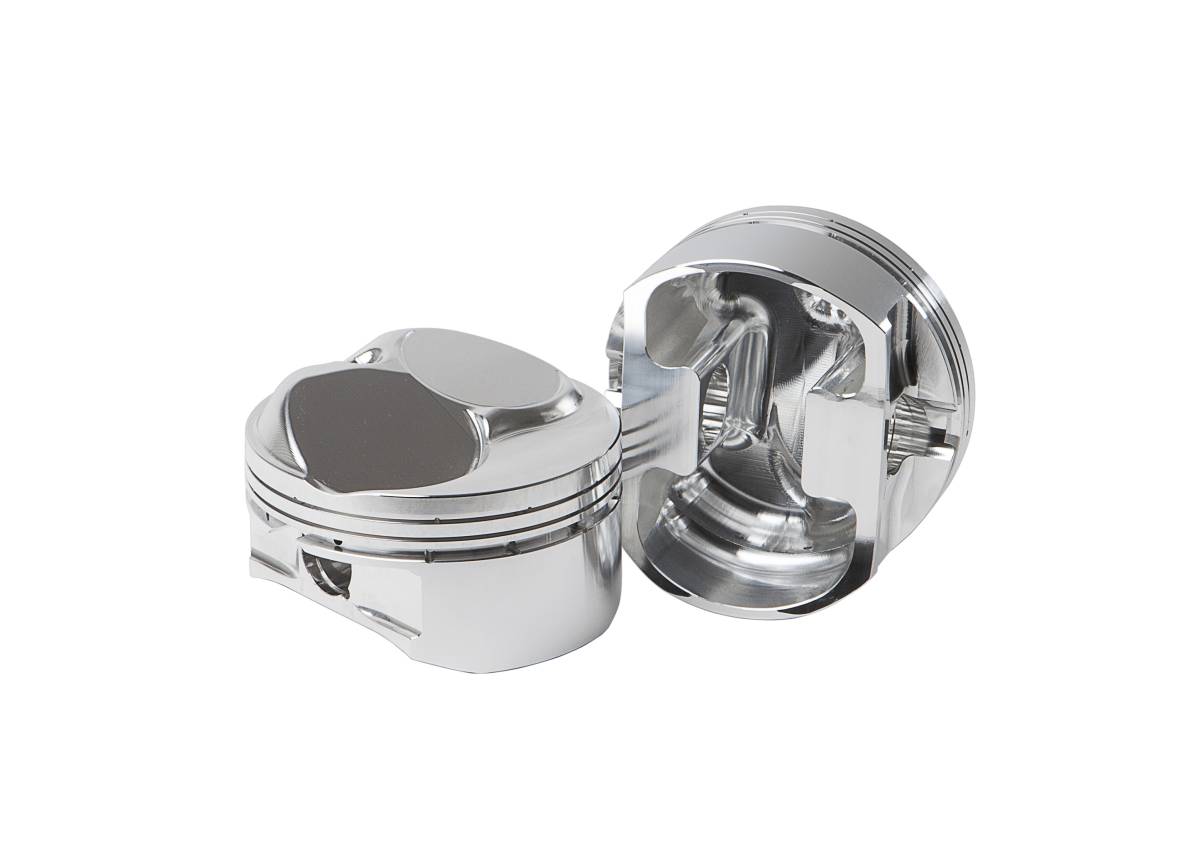

Diamond Pistons 12526-8 Big Block Chevy Brodix Head Hunter MC Series
Big Block Chevy Brodix HH M/C Dome
12526-8
Forced pin oilers from the oil ring; Pin Fitted; Lateral Gas Ports; 3D Dome & Pockets; H-13 Pins, Lock's & Support Rails (if required) included
Pricing:
$1,928.35
Description
| Product Specifications | Details |
|---|---|
| Item Number | 12526-8 |
| Engine Make | Chevrolet |
| Bore | 4.500 |
| Stroke | 4.500 |
| Rod | 6.700 |
| Comp Height | 1.240 |
| Weight | 611 |
| Pin | .990 x 2.930 |
| CC | 48.0cc |
| Comp Ratio | 14.8 |
| Cylinder Head Chamber CC | 118 |
| Ring Thickness | .043 x .043 x 3.0mm |
| VP Intake Depth | 0.340 |
| VP Exhaust Depth | -0.080 |
| Cylinders | 8 |
| Barcode ID | 686162207503 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Big Block Chevy Brodix HH M/C Dome |
| Pins Included | Y |
| Pin Part# | H9902930185 |
| Rings Included | Y |
| Ring Part# | 09214500 |
| Rails Included | Y |
| Support Rail Part# | 019000500-8 |
| Locks Included | Y |
| Lock Ring Part# | 015106-32 |
| Country of Origin | USA |
Details
- 12526-8
- 12526-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
