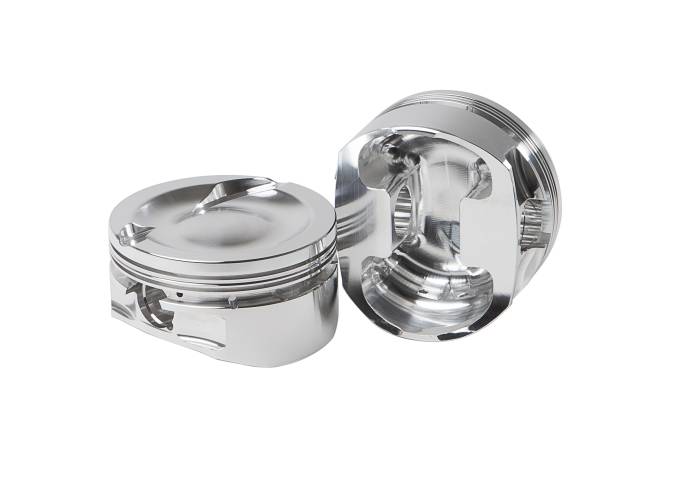

Diamond Pistons 31425-8 Small Block Ford 302/351 Inline Street Strip Dish Top Series
Small Block Ford Dish
31425-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Pockets; Designed for mild boost applications; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,392.65
Description
| Product Specifications | Details |
|---|---|
| Item Number | 31425-8 |
| Engine Make | Ford |
| Bore | 4.125 |
| Stroke | 3.850 |
| Rod | 6.200 |
| Comp Height | 1.345 |
| Weight | 519 |
| Pin | .927 x 2.950 |
| CC | -34.6cc |
| Comp Ratio | 9.2 |
| Cylinder Head Chamber CC | 58 |
| Ring Thickness | 1/16 x 1/16 x 3/16 |
| VP Intake Depth | 0.300 |
| VP Exhaust Depth | 0.234 |
| Cylinders | 8 |
| Barcode ID | 686162211913 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Small Block Ford Dish |
| Pins Included | Y |
| Pin Part# | G9272950155 |
| Rings Included | Y |
| Ring Part# | 09024125 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015104-32 |
| Country of Origin | USA |
Details
- 31425-8
- 31425-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
