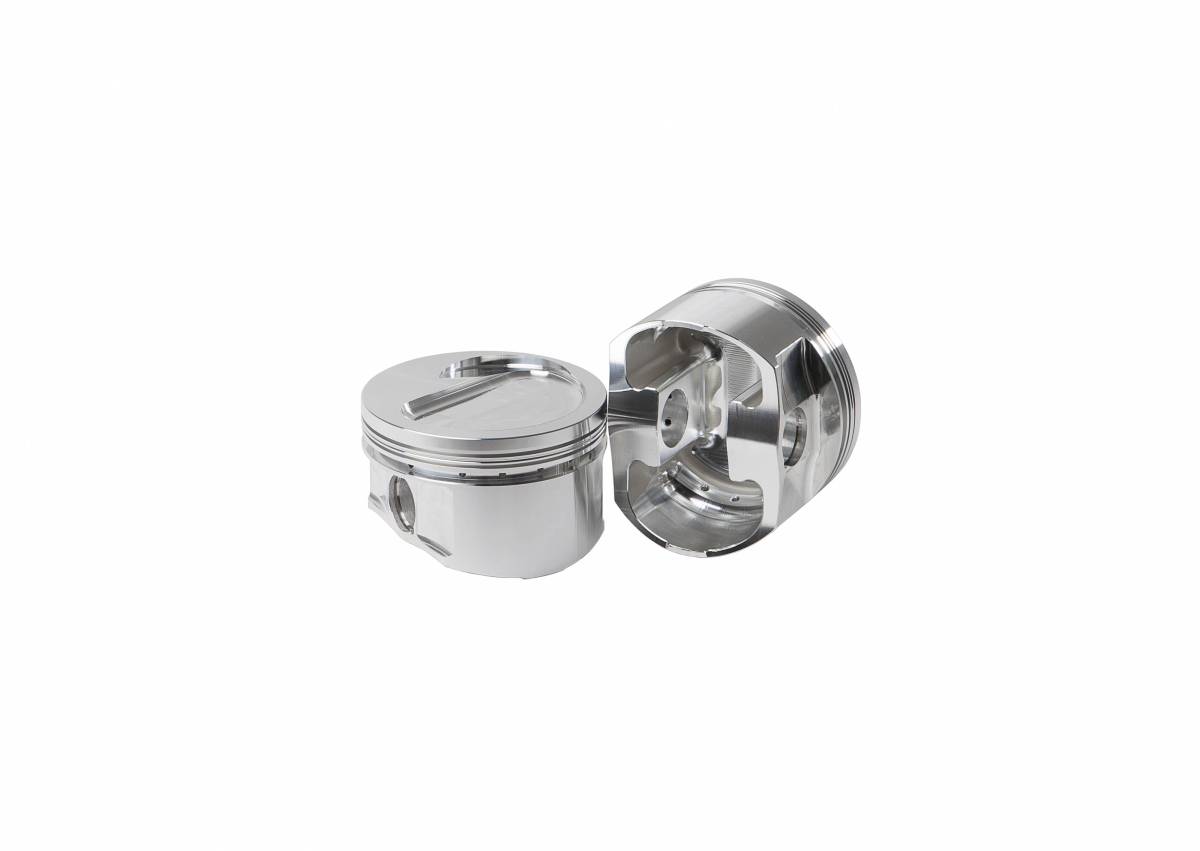

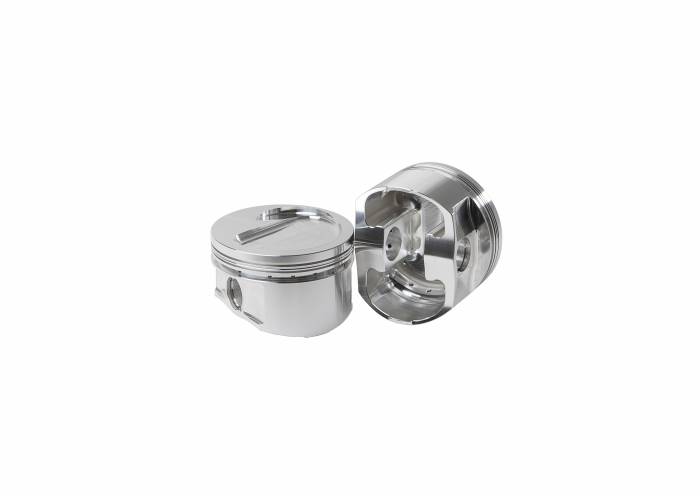

Diamond Pistons 40515-8 Big Block Ford 429-460 M-6049-SCJ & P-51 KAASE Flat Top Series
BB Ford SCJ & P-51 Kaase Flat Top
40515-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,573.72
Description
| Product Specifications | Details |
|---|---|
| Item Number | 40515-8 |
| Engine Make | Ford |
| Bore | 4.400 |
| Stroke | 4.300 |
| Rod | 6.800 |
| Comp Height | 1.345 |
| Weight | 568 |
| Pin | .990 x 2.930 |
| CC | -3.2cc |
| Comp Ratio | 13.1 |
| Cylinder Head Chamber CC | 72 |
| Ring Thickness | 1/16 x 1/16 x 3/16 |
| VP Intake Depth | 0.195 |
| VP Exhaust Depth | 0.000 |
| Cylinders | 8 |
| Barcode ID | 40515-8 |
| Class | 14 |
| Product Relations | Details |
|---|---|
| Product Line | BB Ford SCJ & P-51 Kaase Flat Top |
| Pins Included | Y |
| Pin Part# | G9902930185 |
| Rings Included | Y |
| Ring Part# | 09024400 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015106-32 |
| Country of Origin | USA |
Details
- 40515-8
- 40515-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 16.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
