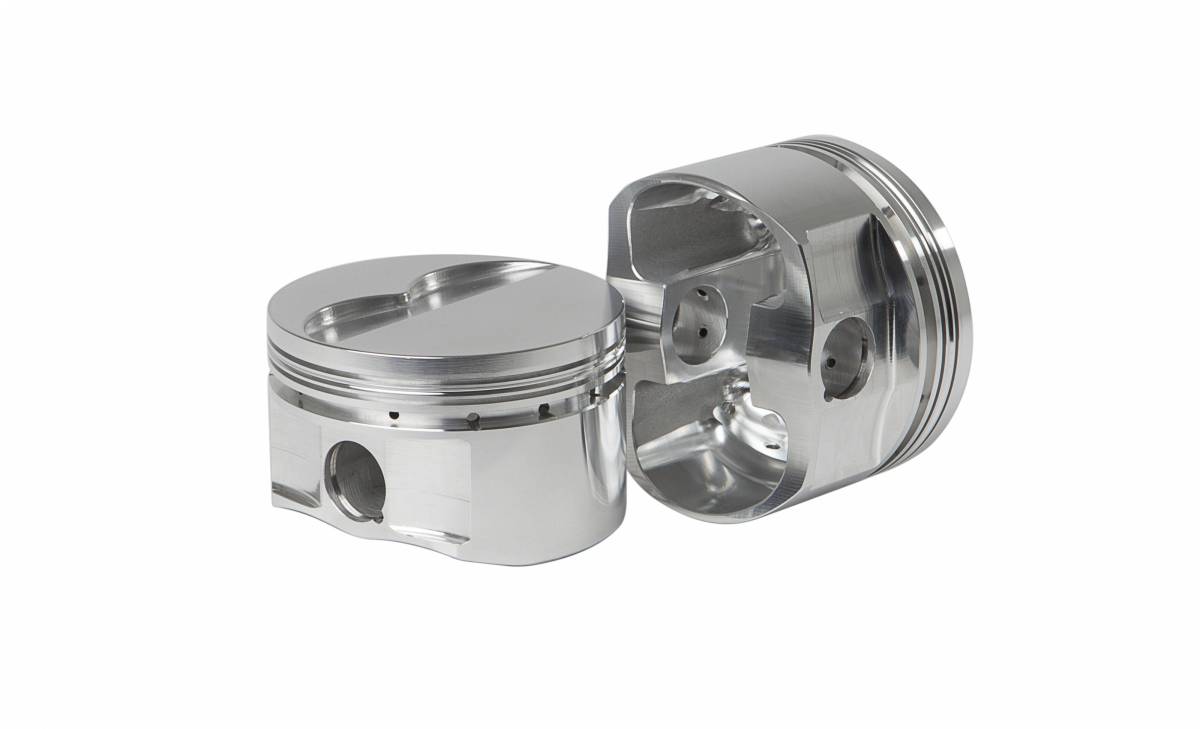

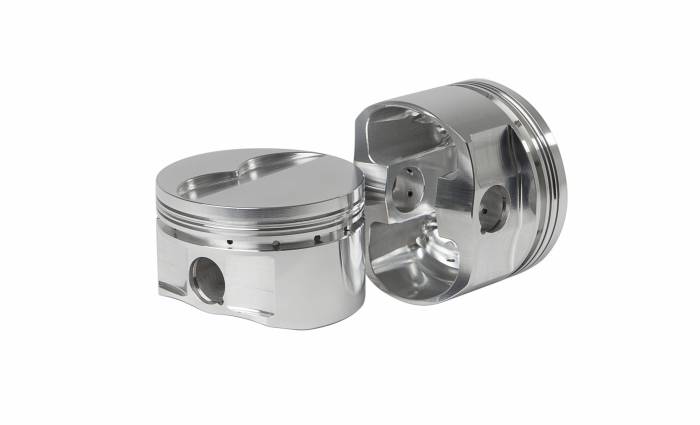

Diamond Pistons 41506-8 Ford FE 427 Street Strip Flat Top Series
Big Block FE Ford Flat Top
41506-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,405.24
Description
| Product Specifications | Details |
|---|---|
| Item Number | 41506-8 |
| Engine Make | Ford |
| Bore | 4.270 |
| Stroke | 3.984 |
| Rod | 6.490 |
| Comp Height | 1.675 |
| Weight | 573 |
| Pin | .975 x 2.930 |
| CC | -6.0cc |
| Comp Ratio | 10.2 |
| Cylinder Head Chamber CC | 82 |
| Ring Thickness | 1/16 x 1/16 x 3/16 |
| VP Intake Depth | 0.226 |
| VP Exhaust Depth | sym exh |
| Cylinders | 8 |
| Barcode ID | 41506-8 |
| Class | 15 |
| Product Relations | Details |
|---|---|
| Product Line | Big Block FE Ford Flat Top |
| Pins Included | Y |
| Pin Part# | G9752930155 |
| Rings Included | Y |
| Ring Part# | 09024270 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015106-32 |
| Country of Origin | USA |
Details
- 41506-8
- 41506-8
- Diamond Racing - Pistons
- New
Shipping Information
- Item Requires Shipping
- 16.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
