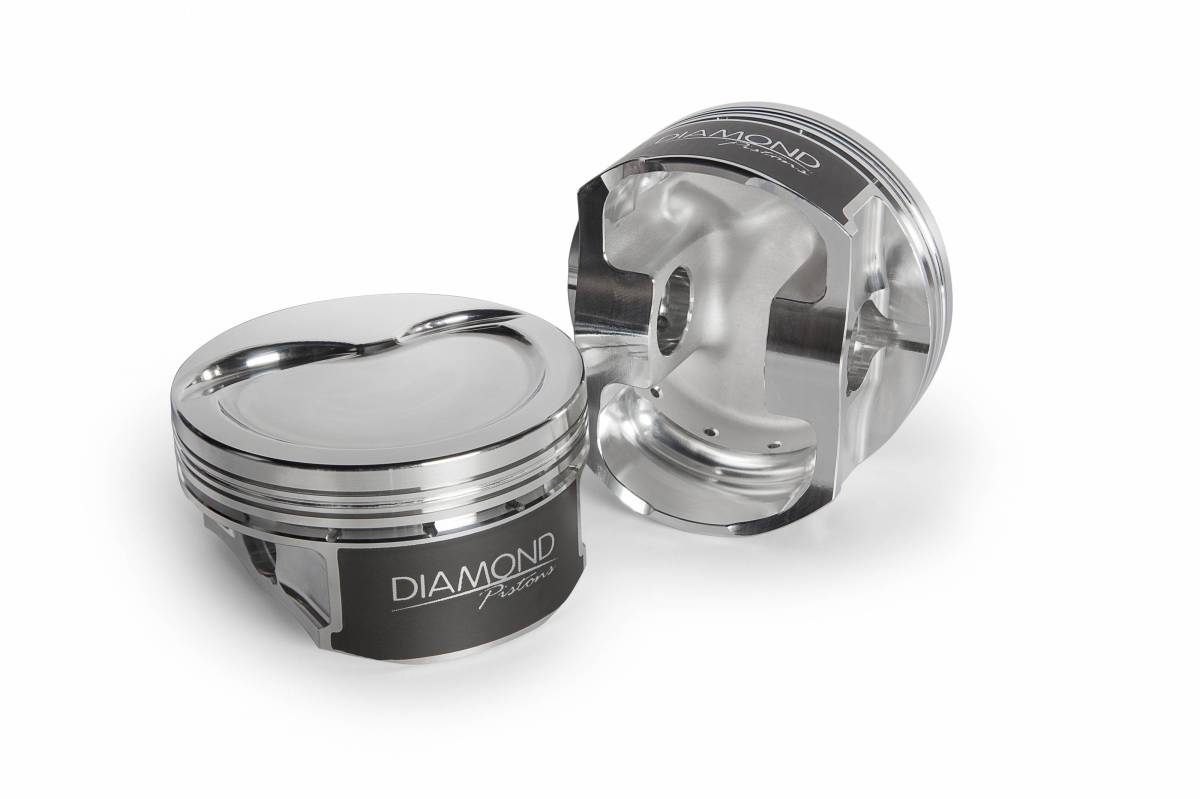

Diamond Pistons 11589-R1-8 Chevy LS Street Strip Dish Series
Chevy LS9 Dish
11589-R1-8
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$966.28
Description
| Product Specifications | Details |
|---|---|
| Item Number | 11589-R1-8 |
| Engine Make | Chevrolet |
| Bore | 4.070 |
| Stroke | 3.622 |
| Rod | 6.125 |
| Comp Height | 1.304 |
| Weight | call |
| Pin | .927 x 2.500 |
| CC | -11.0cc |
| Comp Ratio | 9.5 |
| Cylinder Head Chamber CC | 70 |
| Ring Thickness | 1.2mm x 1.2mm x 3.0mm |
| VP Intake Depth | 0.178 |
| VP Exhaust Depth | 0.108 |
| Cylinders | 8 |
| Barcode ID | 686162203932 |
| Class | DIA-AMM-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Chevy LS9 Dish |
| Pins Included | Y |
| Pin Part# | G9272500185 |
| Rings Included | Y |
| Ring Part# | 09454070 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015104-32 |
| Country of Origin | USA |
Details
- 11589-R1-8
- 11589-R1-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
