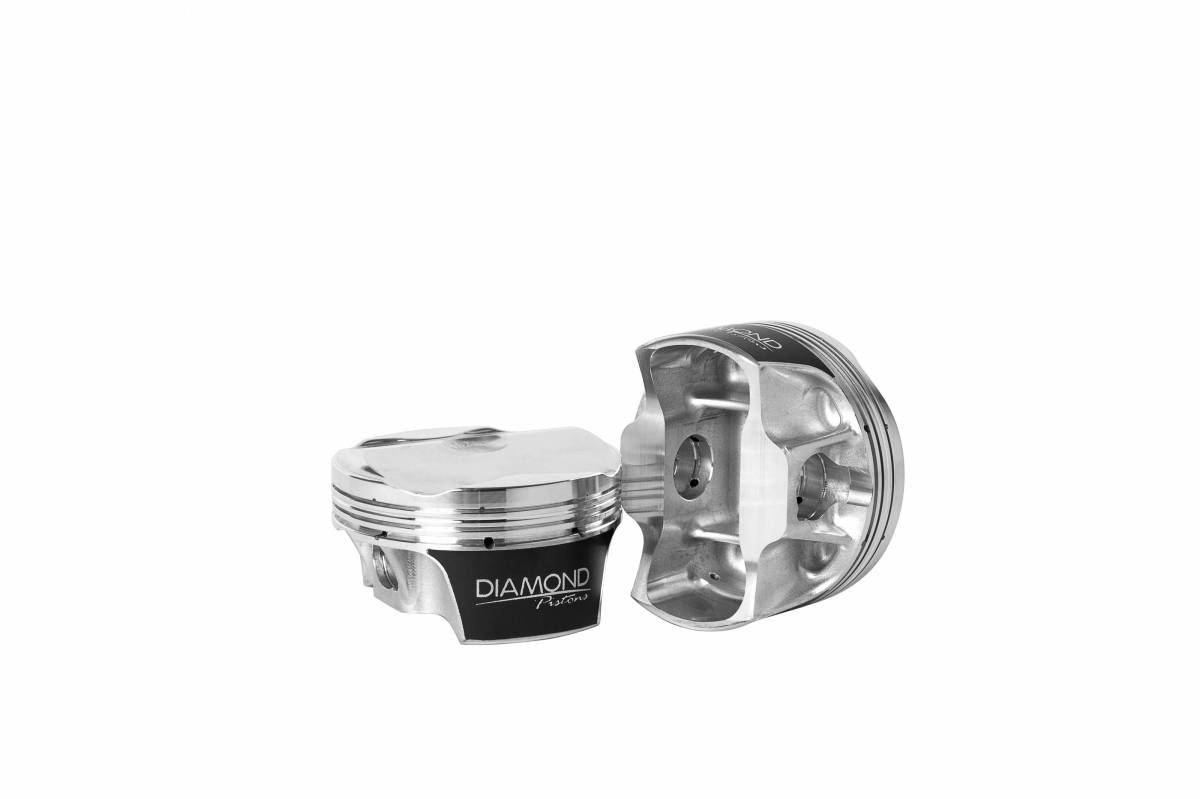

Diamond Pistons 30702-8 Ford Modular 5.2L Voodoo Series
Ford Modular 5.2L Voodoo Dome
30702-8
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Inboard Forging; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,330.51
Description
| Product Specifications | Details |
|---|---|
| Item Number | 30702-8 |
| Engine Make | Ford |
| Bore | 3.700 |
| Stroke | 3.661 |
| Rod | 5.933 |
| Comp Height | 1.155 |
| Weight | call |
| Pin | .827 x 2.250 |
| CC | 2.0cc |
| Comp Ratio | 11.0 |
| Cylinder Head Chamber CC | 57 |
| Ring Thickness | 1.2mm x 1.2mm x 2.0mm |
| VP Intake Depth | 0.140 |
| VP Exhaust Depth | 0.075 |
| Cylinders | 8 |
| Barcode ID | 686162211128 |
| Class | DIA-AMM-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Ford Modular 5.2L Voodoo Dome |
| Pins Included | Y |
| Pin Part# | G8272250180C |
| Rings Included | Y |
| Ring Part# | 09513700 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015113-16 |
| Country of Origin | USA |
Details
- 30702-8
- 30702-8
- Diamond Racing - Pistons
- New
Categories
- Ford - Modular - 5.2L Voodoo
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
