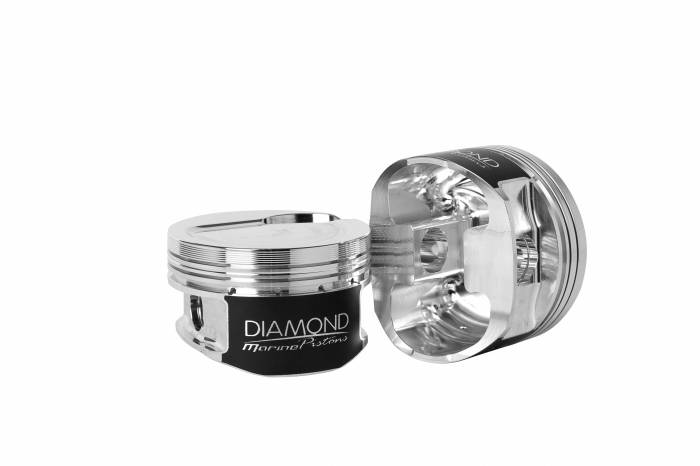

Diamond Pistons 70227-8 Chevrolet Marine Series
BB Chevrolet Marine
70227-8
Pin Fitted; 3D Pockets; Moly Coated Skirts; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,590.52
Description
| Product Specifications | Details |
|---|---|
| Item Number | 70227-8 |
| Engine Make | Chevrolet |
| Bore | 4.280 |
| Stroke | 4.250 |
| Rod | 6.385 |
| Comp Height | 1.270 |
| Weight | call |
| Pin | .990 x 2.930 |
| CC | -10.0cc |
| Comp Ratio | 8.2 |
| Cylinder Head Chamber CC | 118 |
| Ring Thickness | 1/16 x 1/16 x 4.0mm |
| VP Intake Depth | 0.325 |
| VP Exhaust Depth | 0.000 |
| Cylinders | 8 |
| Barcode ID | 686162222186 |
| Class | DIA-AM4-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | BB Chevrolet Marine |
| Pins Included | Y |
| Pin Part# | G9902930185C |
| Rings Included | Y |
| Ring Part# | 09714280-R1 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015135-16 |
| Country of Origin | USA |
Details
- 70227-8
- 70227-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
