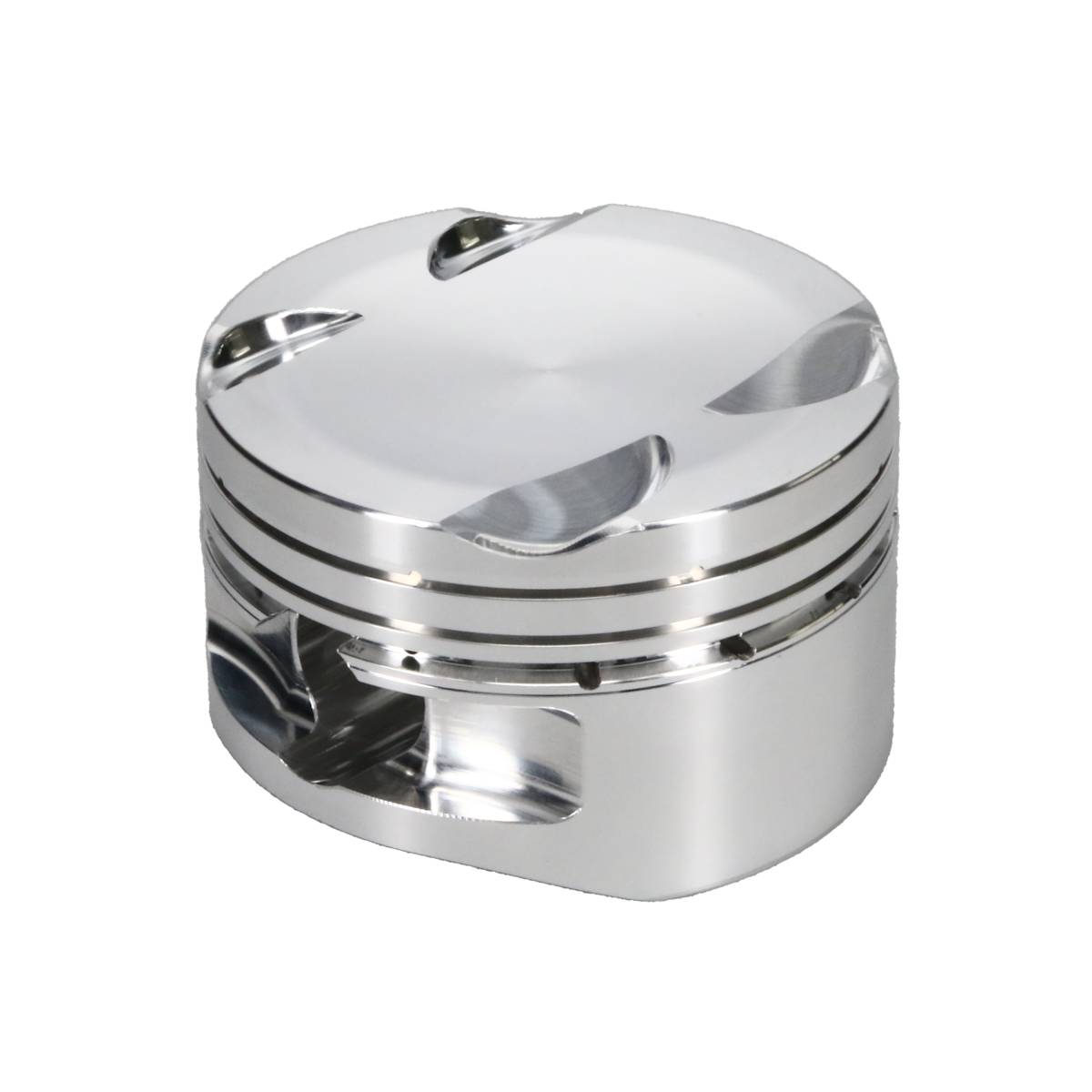

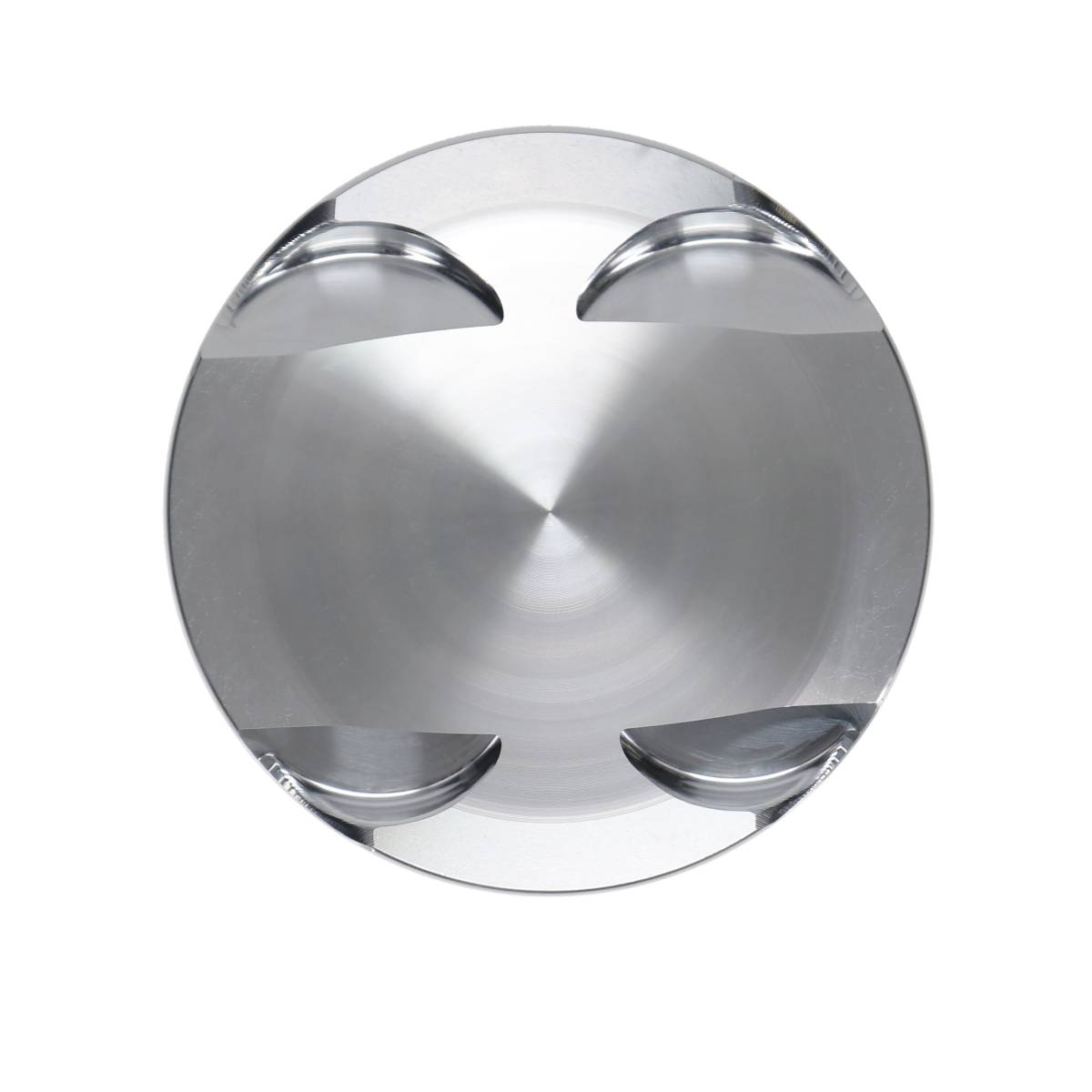

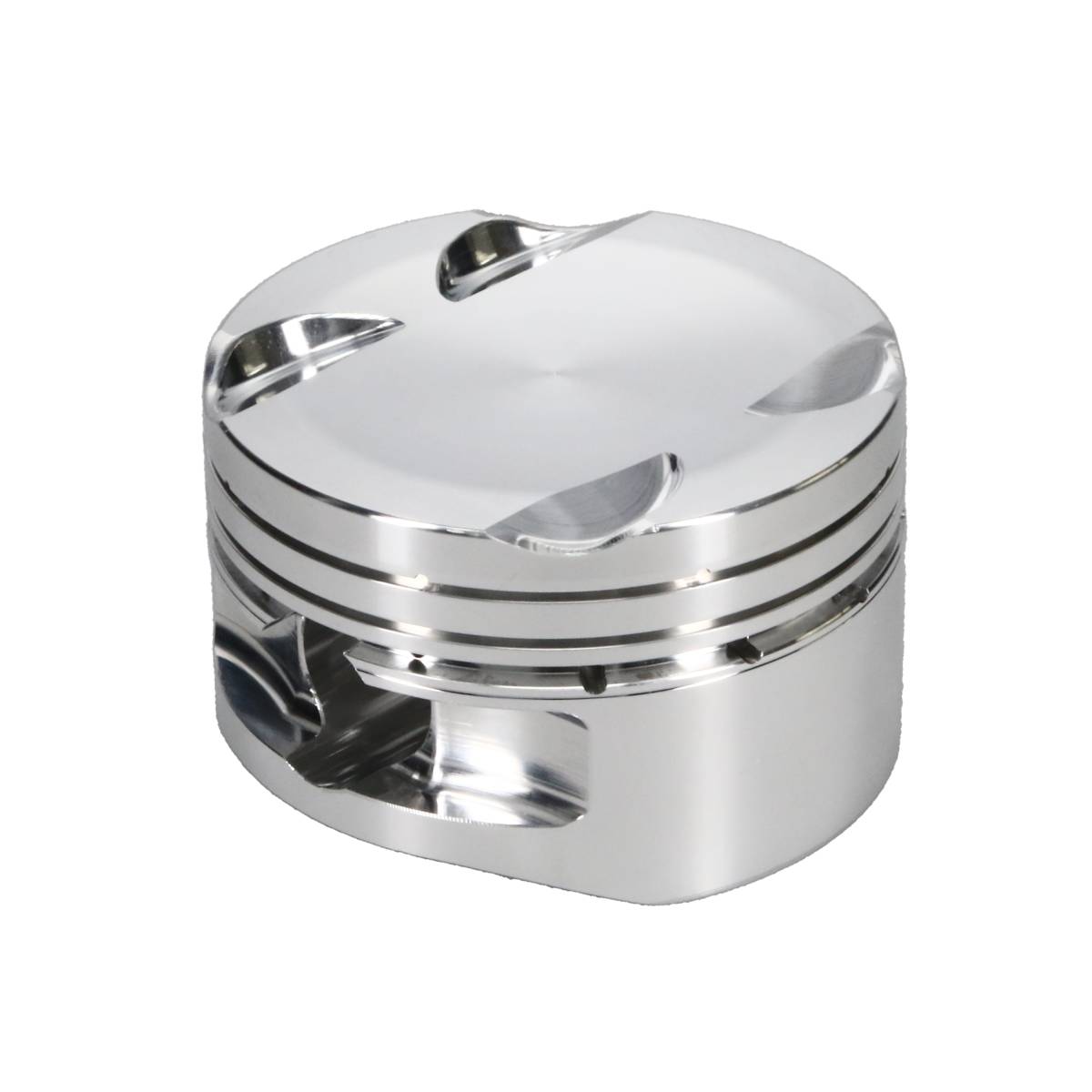

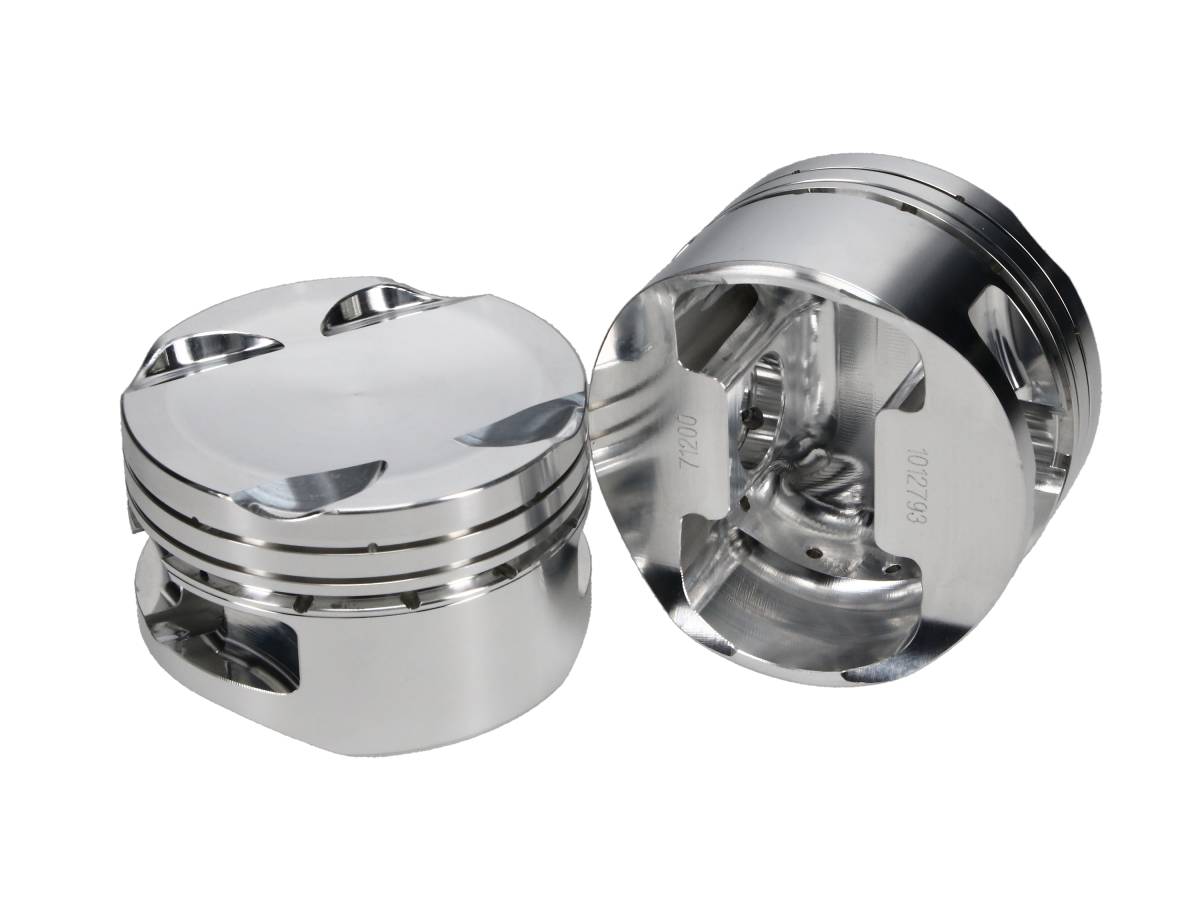

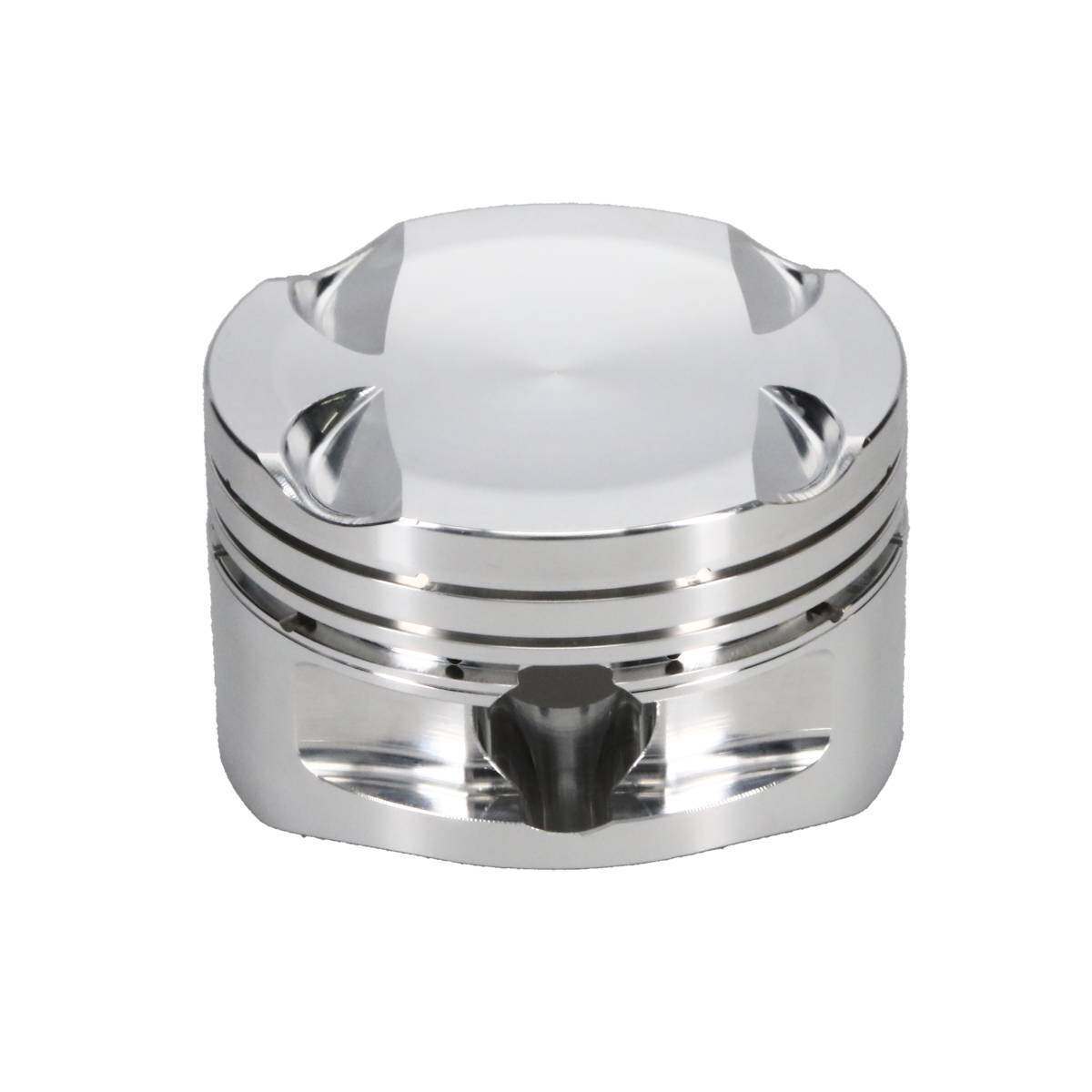

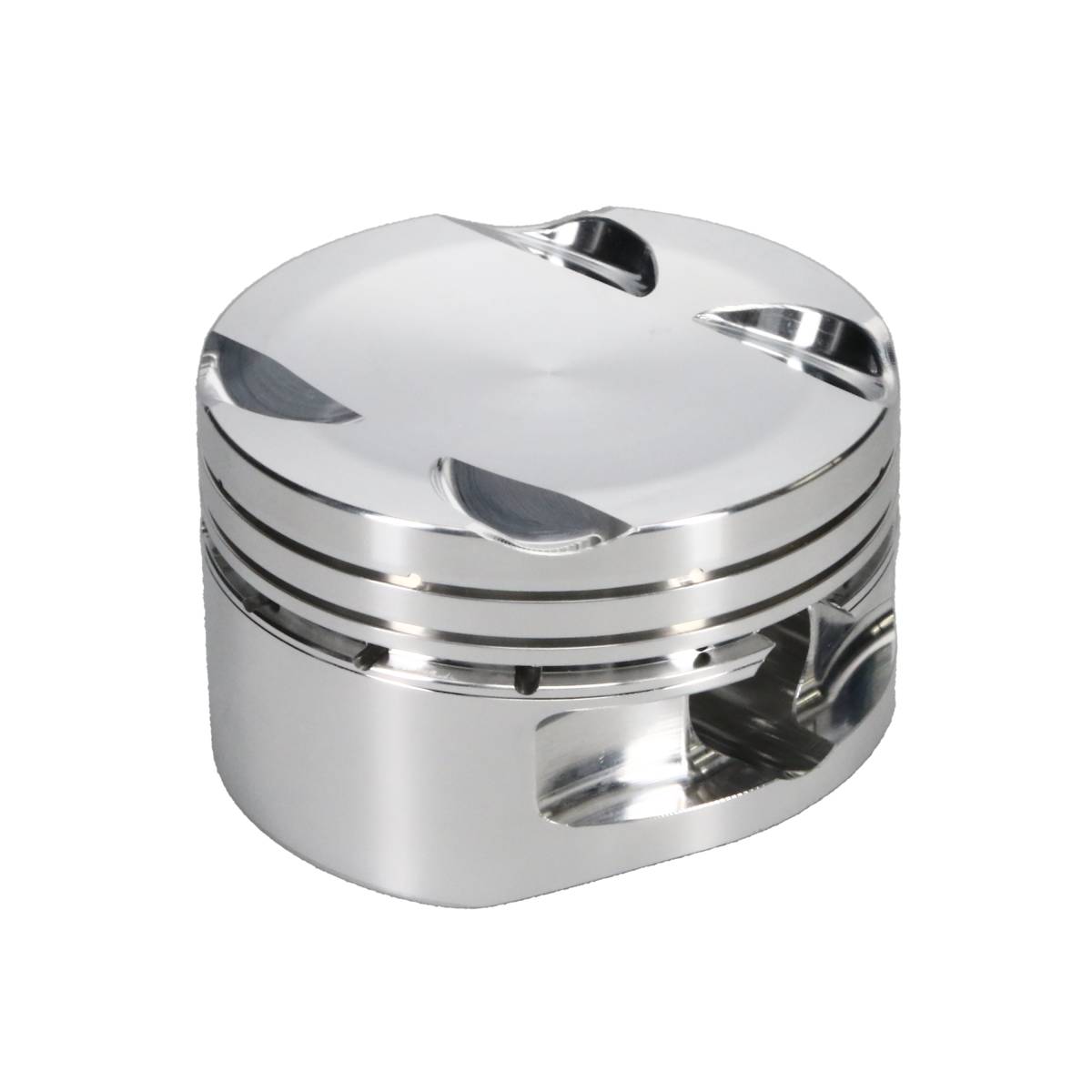

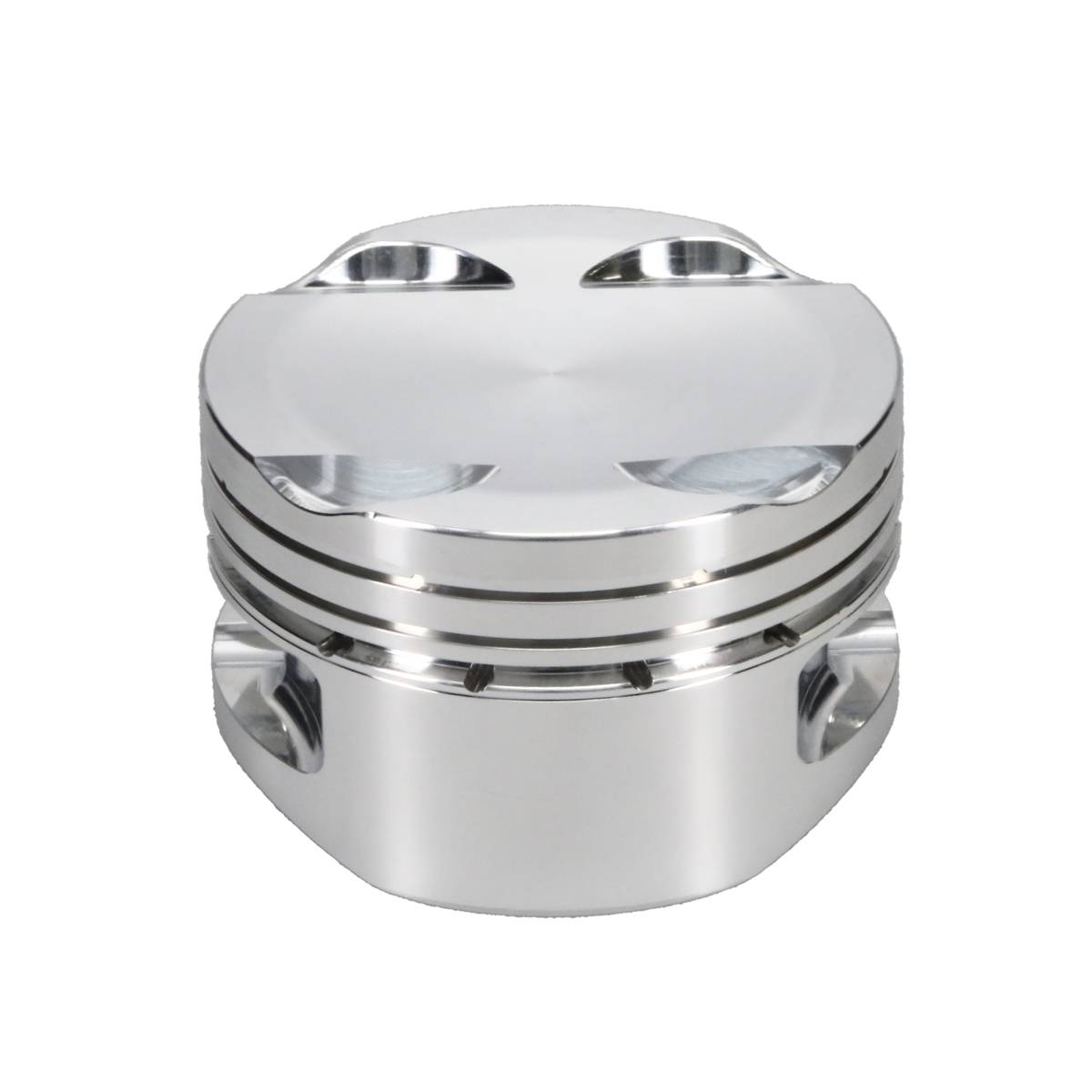

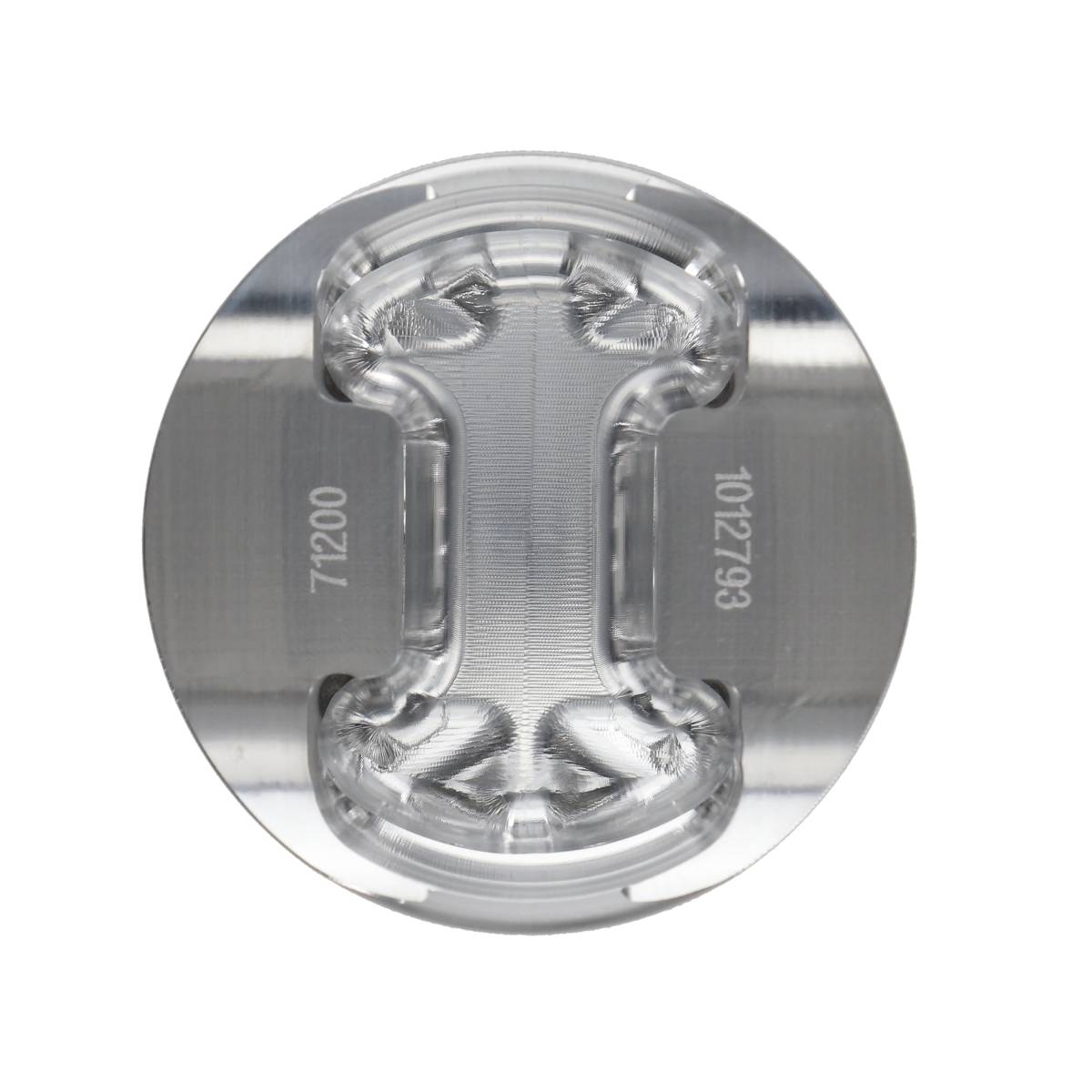

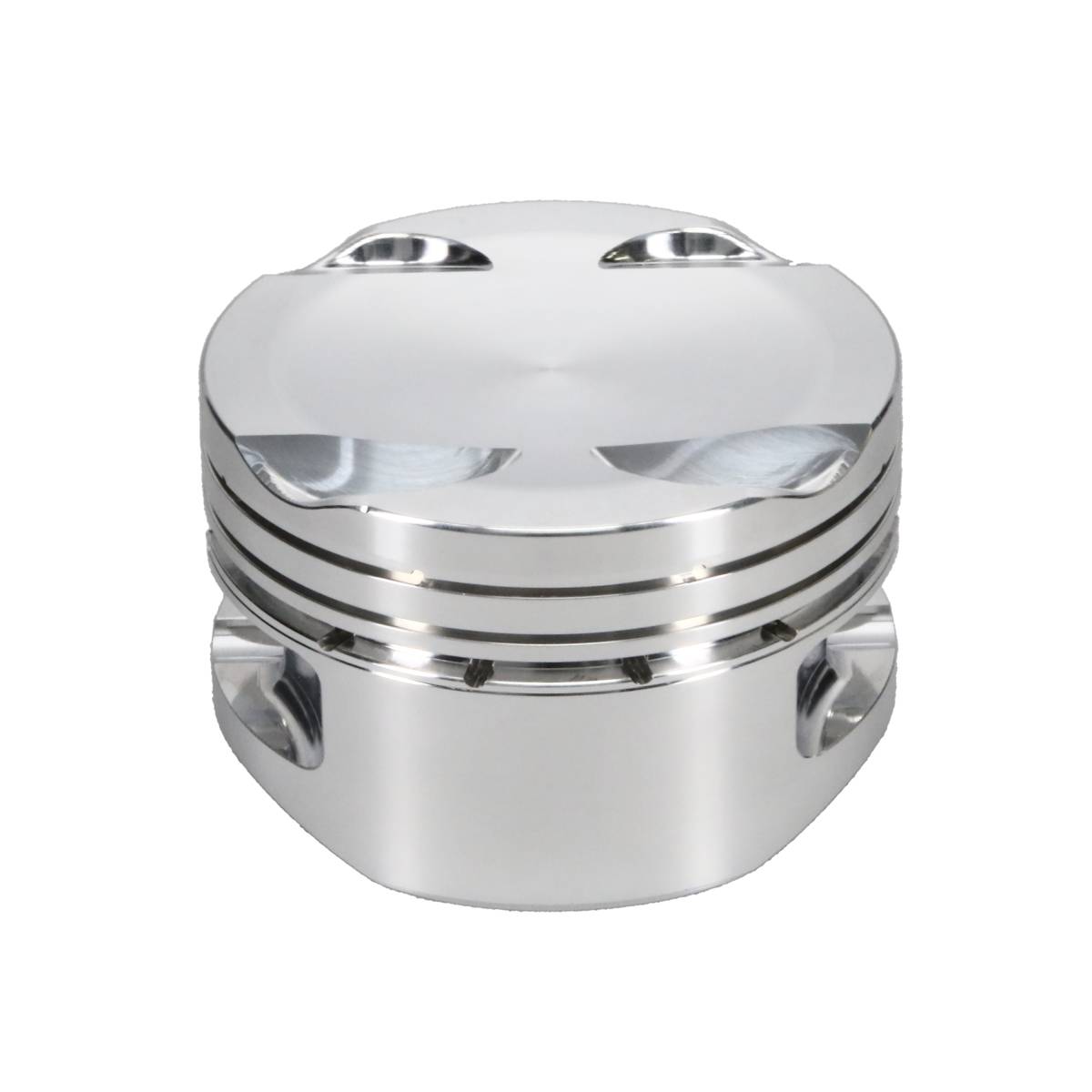

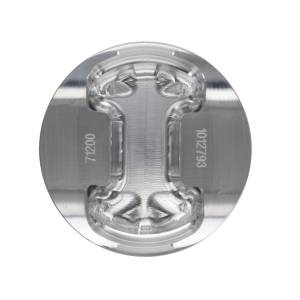

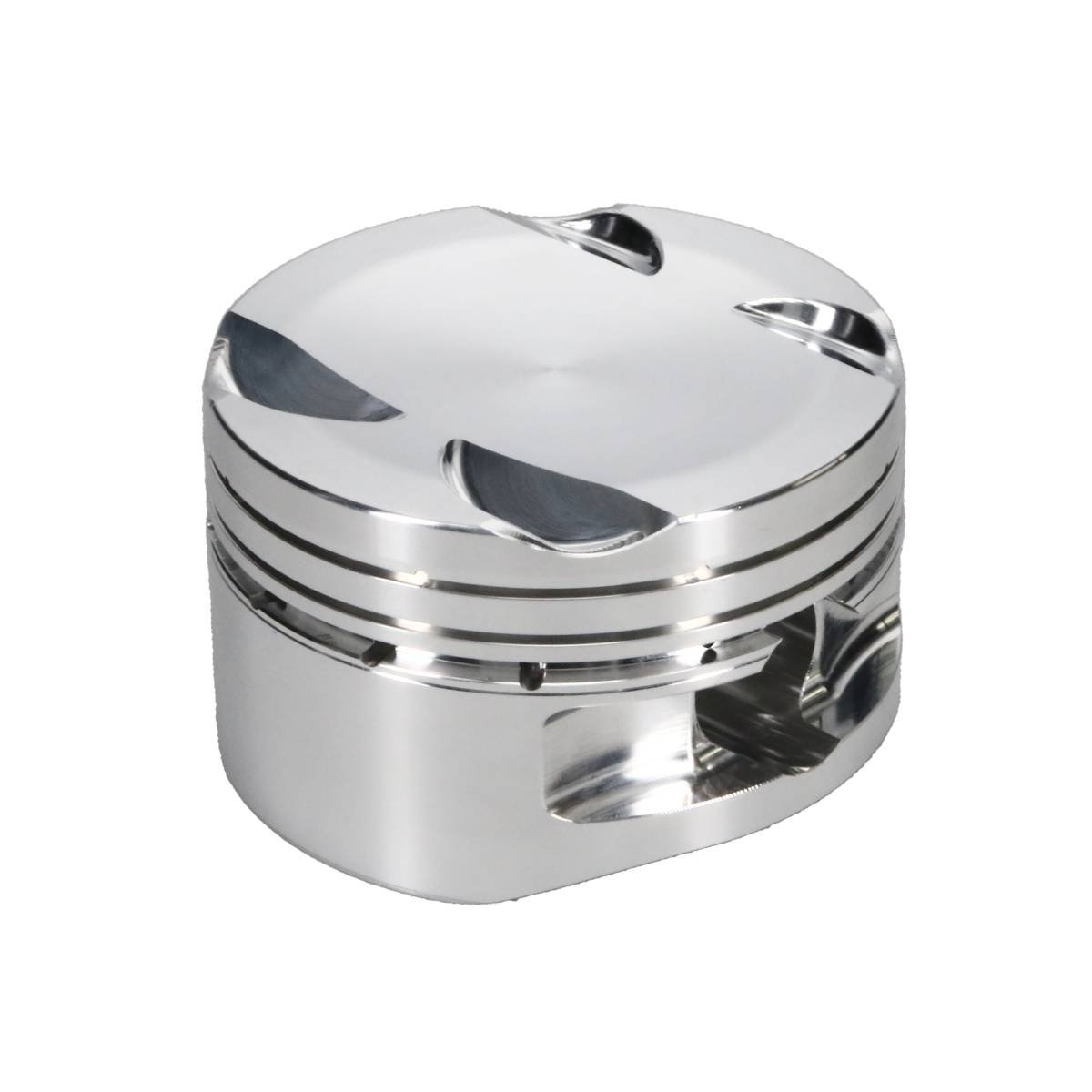

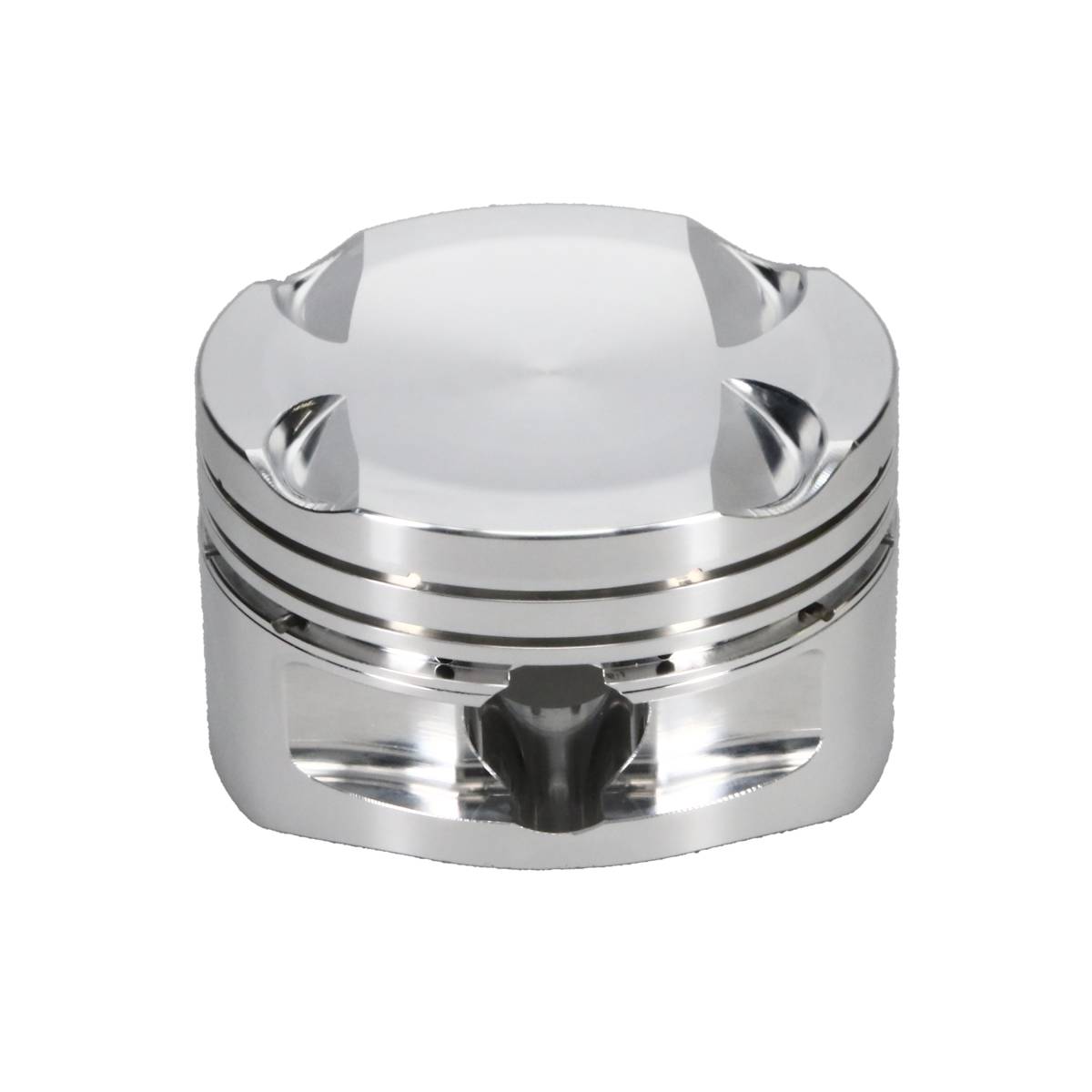

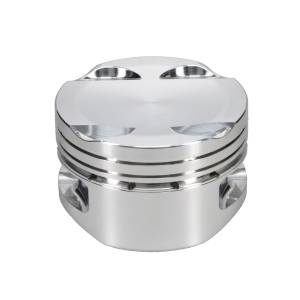

Diamond Pistons 71201-4 Honda Rebel Series
Honda K24 Rebel Series
71201-4
Forced pin oilers from the oil ring; Pin Fitted; Later Gas Ports; 3D Pockets; Pins, Pin Buttons included
Pricing:
$955.77
Description
| Product Specifications | Details |
|---|---|
| Item Number | 71201-4 |
| Engine Make | Honda |
| Bore | 87.5mm |
| Stroke | 99.0mm |
| Rod | 5.984 |
| Comp Height | 1.181 |
| Weight | call |
| Pin | .866 x 2.250 |
| CC | -6.0cc |
| Comp Ratio | 10.2 |
| Cylinder Head Chamber CC | 50 |
| Ring Thickness | 1.2mm x 1.2mm x 2.8mm |
| VP Intake Depth | 0.200 |
| VP Exhaust Depth | 0.150 |
| Cylinders | 4 |
| Barcode ID | 686162222490 |
| Class | DIA-ASC-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Honda K24 Rebel Series |
| Pins Included | Y |
| Pin Part# | H8662250200 |
| Rings Included | Y |

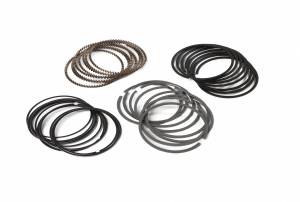

| Ring Part# | 09583445 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | PB-71201-8 |
| Country of Origin | USA |
Details
- 71201-4
- 71201-4
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 12.0 lbs.
- W4.0000” x H12.0000” x L16.5000”
