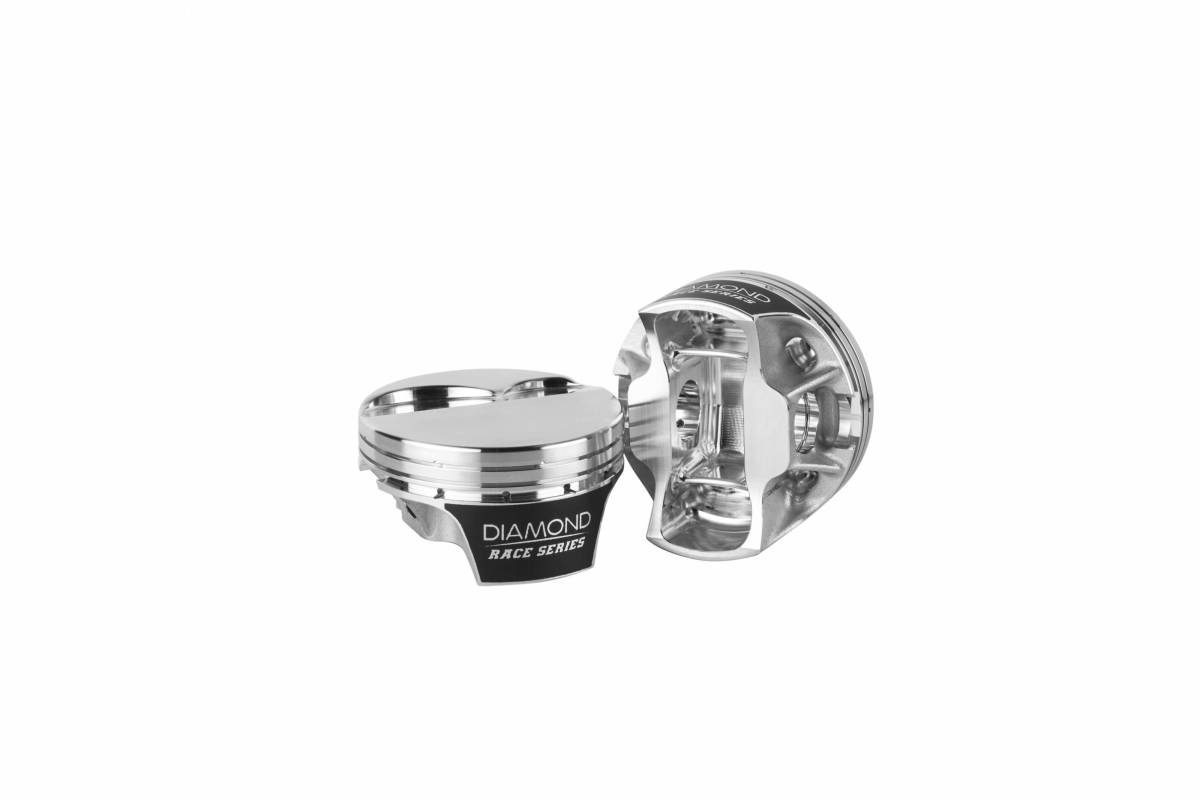

Diamond Pistons 21564-RS-8 LS2K 12 Flat Top Series
Chevy LSX 12
21564-RS-8
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Inboard Forging; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,347.31
Description
| Product Specifications | Details |
|---|---|
| Item Number | 21564-RS-8 |
| Engine Make | Chevrolet |
| Bore | 4.030 |
| Stroke | 3.622 |
| Rod | 6.125 |
| Comp Height | 1.304 |
| Weight | call |
| Pin | .927 x 2.250 |
| CC | -4.8cc |
| Comp Ratio | 9.6 |
| Cylinder Head Chamber CC | 70 |
| Ring Thickness | 1.5mm x 1.5mm x 3.0mm |
| VP Intake Depth | 0.220 |
| VP Exhaust Depth | 0.162 |
| Cylinders | 8 |
| Barcode ID | 686162000000 |
| Class | DIA-AMM-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Chevy LSX 12 |
| Pins Included | Y |
| Pin Part# | H9272250250C |
| Rings Included | Y |
| Ring Part# | 09054030 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015111-16 |
| Country of Origin | USA |
Details
- 21564-RS-8
- 21564-RS-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
