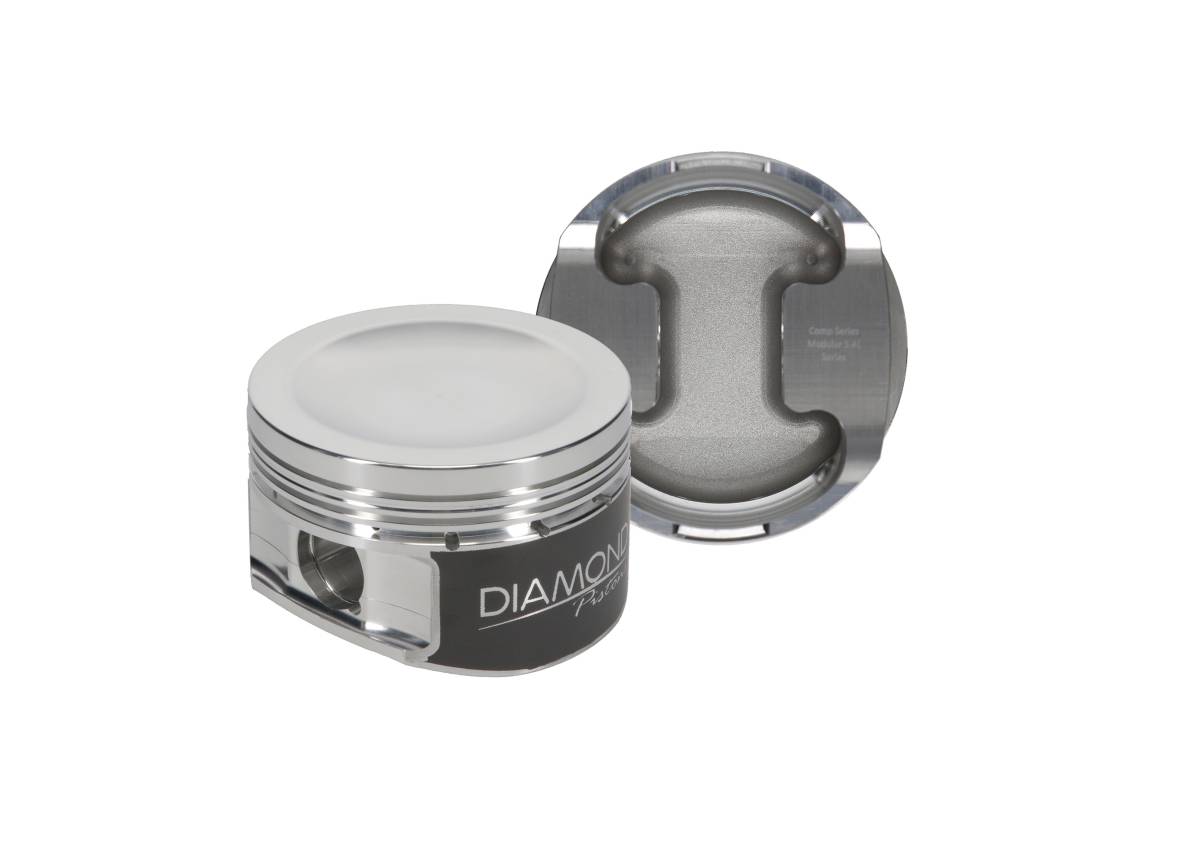

Diamond Pistons 30433-R1-8 Ford Modular 5.4L SHOC 2V Dish Series
Modular 5.4L SOHC 2V
30433-R1-8
Forced pin oilers from the oil ring; Pin Fitted; Moly Coated Skirts; 3D Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$966.28
Description
| Product Specifications | Details |
|---|---|
| Item Number | 30433-R1-8 |
| Engine Make | Ford |
| Bore | 3.552 |
| Stroke | 4.165 |
| Rod | 6.657 |
| Comp Height | 1.330 |
| Weight | call |
| Pin | .866 x 2.500 |
| CC | -11.5cc |
| Comp Ratio | 10.5 |
| Cylinder Head Chamber CC | 51 |
| Ring Thickness | 1.2mm x 1.5mm x 3.0mm |
| VP Intake Depth | 0.000 |
| VP Exhaust Depth | 0.000 |
| Cylinders | 8 |
| Barcode ID | 686162210947 |
| Class | DIA-AMM-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Modular 5.4L SOHC 2V |
| Pins Included | Y |
| Pin Part# | G8662500180C |
| Rings Included | Y |
| Ring Part# | 09403552 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 015113-16 |
| Country of Origin | USA |
Details
- 30433-R1-8
- 30433-R1-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
