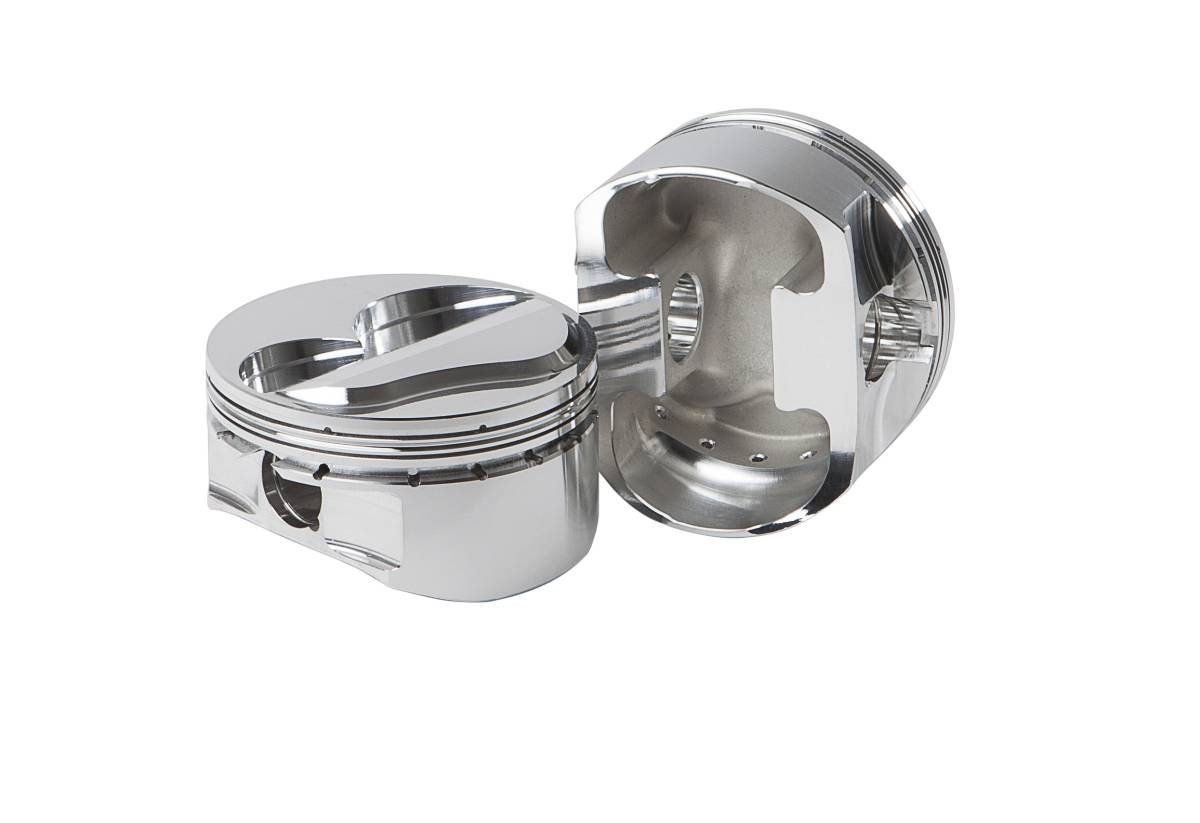

Diamond Pistons 11854-8 Small Block Chevy 15? Brodix -12 Dome Series
Small Block Chevy Dome
11854-8
Forced pin oilers from the oil ring; Pin Fitted; 3D Dome & Pockets; 4130 Pins, Lock's & Support Rails (if required) included
Pricing:
$1,705.24
Description
| Product Specifications | Details |
|---|---|
| Item Number | 11854-8 |
| Engine Make | Chevrolet |
| Bore | 4.155 |
| Stroke | 3.750 |
| Rod | 6.000 |
| Comp Height | 1.125 |
| Weight | 484 |
| Pin | .927 x 2.750 |
| CC | 2.0cc |
| Comp Ratio | 13.3 |
| Cylinder Head Chamber CC | 55 |
| Ring Thickness | .043 x .043 x 3.0mm |
| VP Intake Depth | 0.267 |
| VP Exhaust Depth | 0.217 |
| Cylinders | 8 |
| Barcode ID | 193564377692 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Small Block Chevy Dome |
| Pins Included | Y |
| Pin Part# | G9272750155C |
| Rings Included | Y |
| Ring Part# | 09224155 |
| Rails Included | Y |
| Support Rail Part# | 019010155-8 |
| Locks Included | Y |
| Lock Ring Part# | 015111-16 |
| Country of Origin | USA |
Details
- 11854-8
- 11854-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
