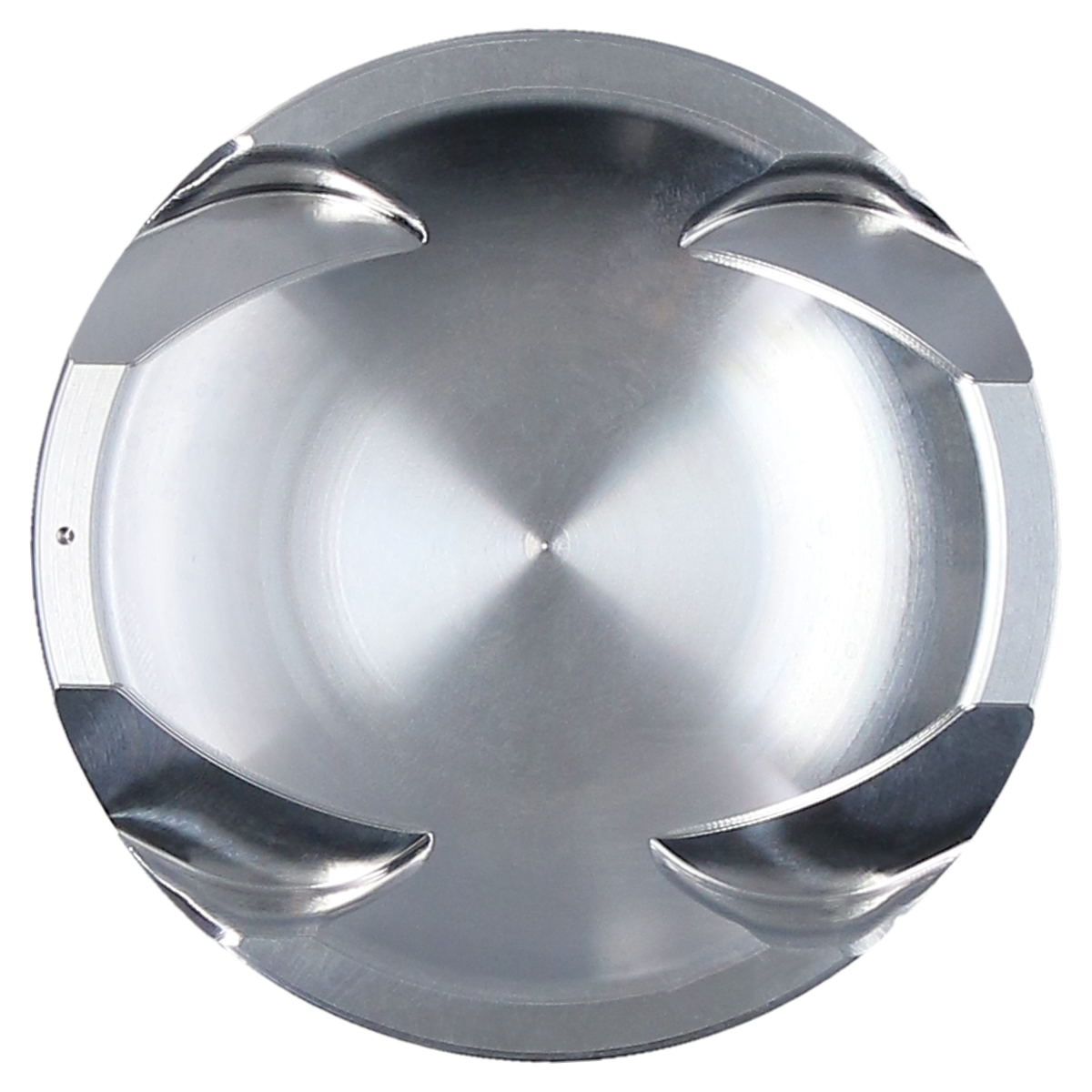

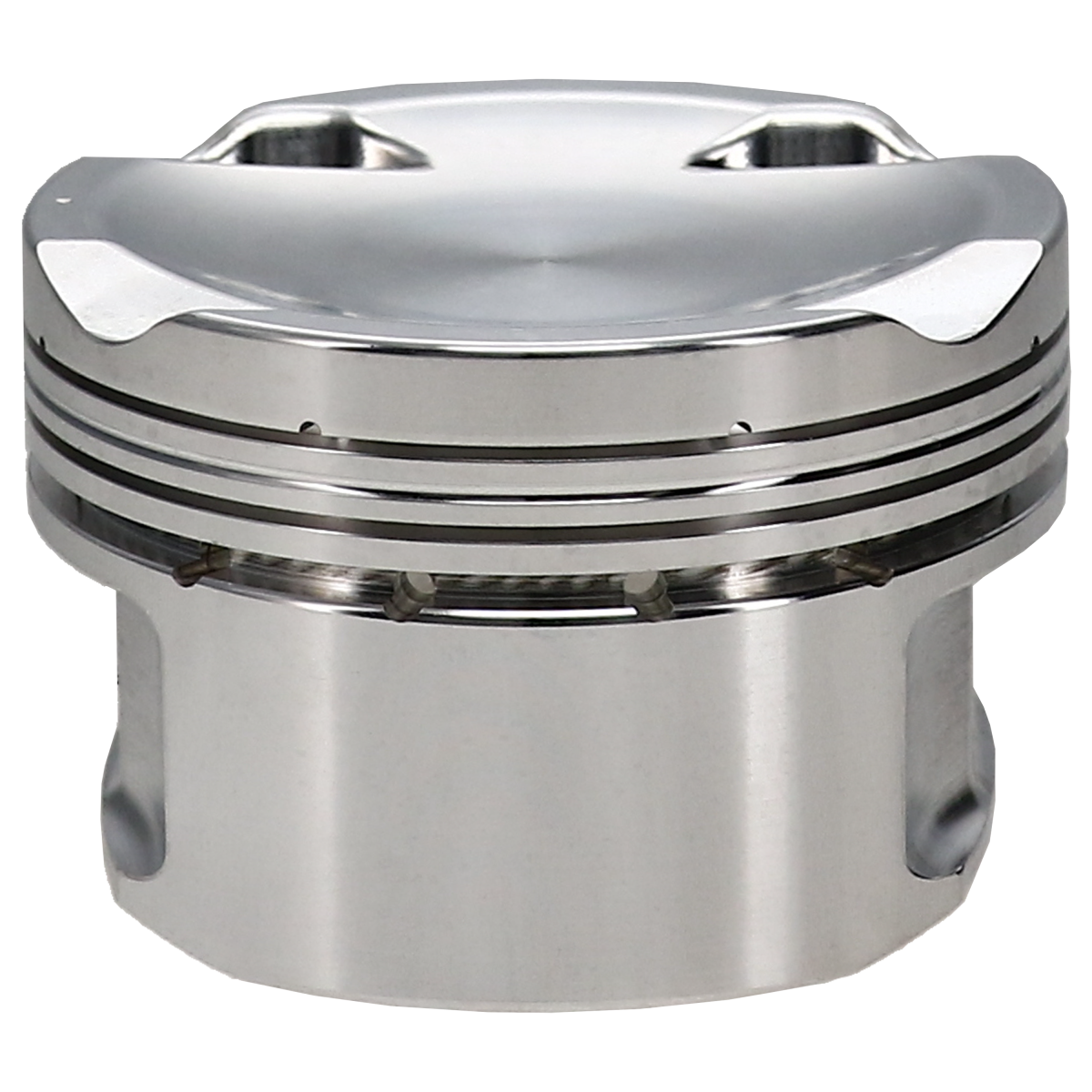

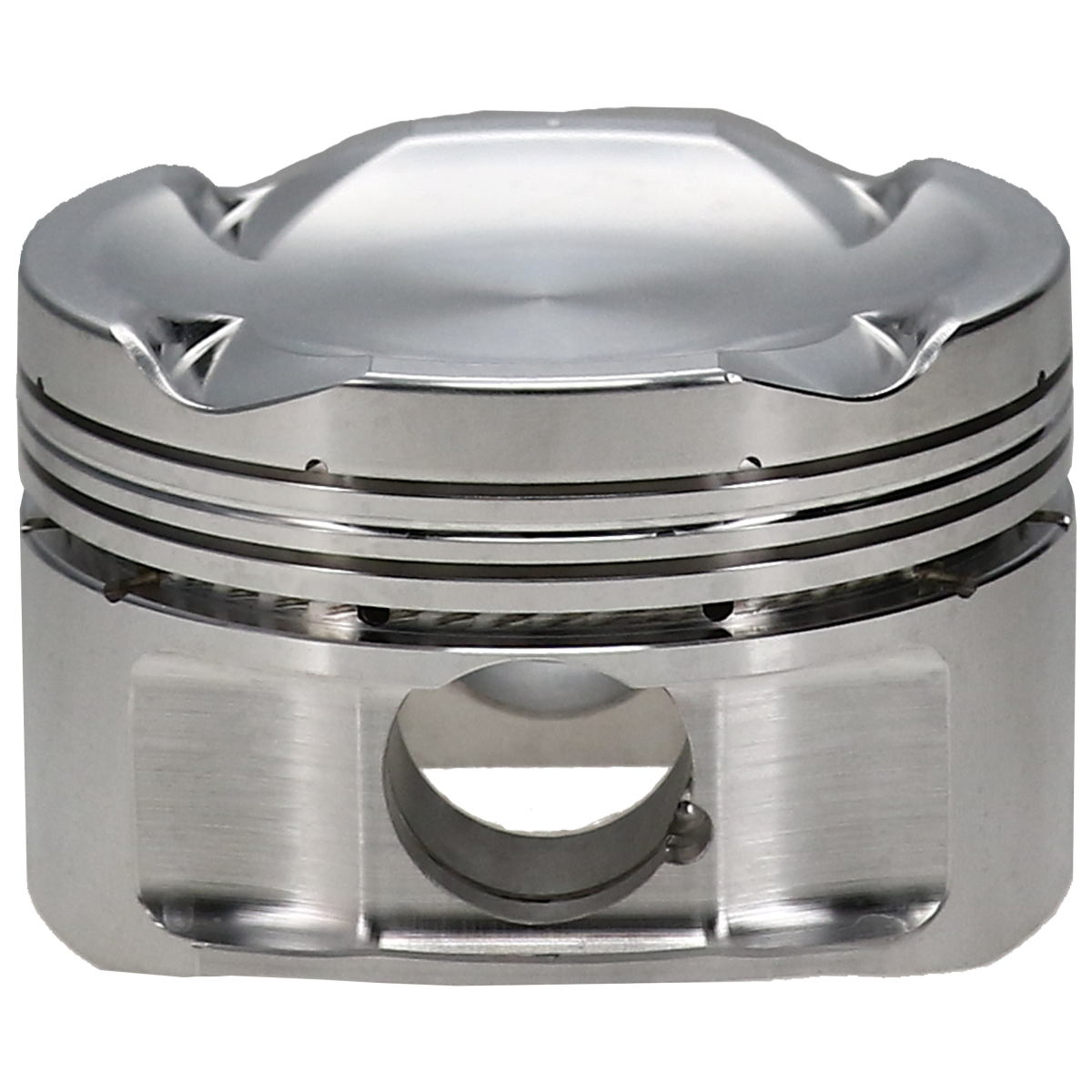

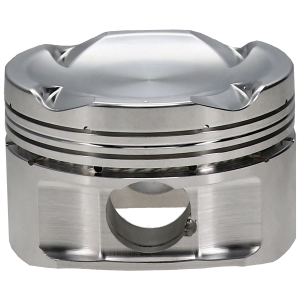

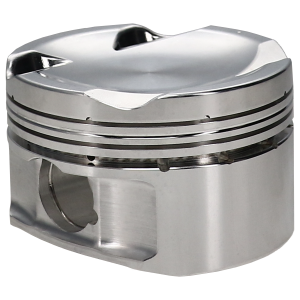

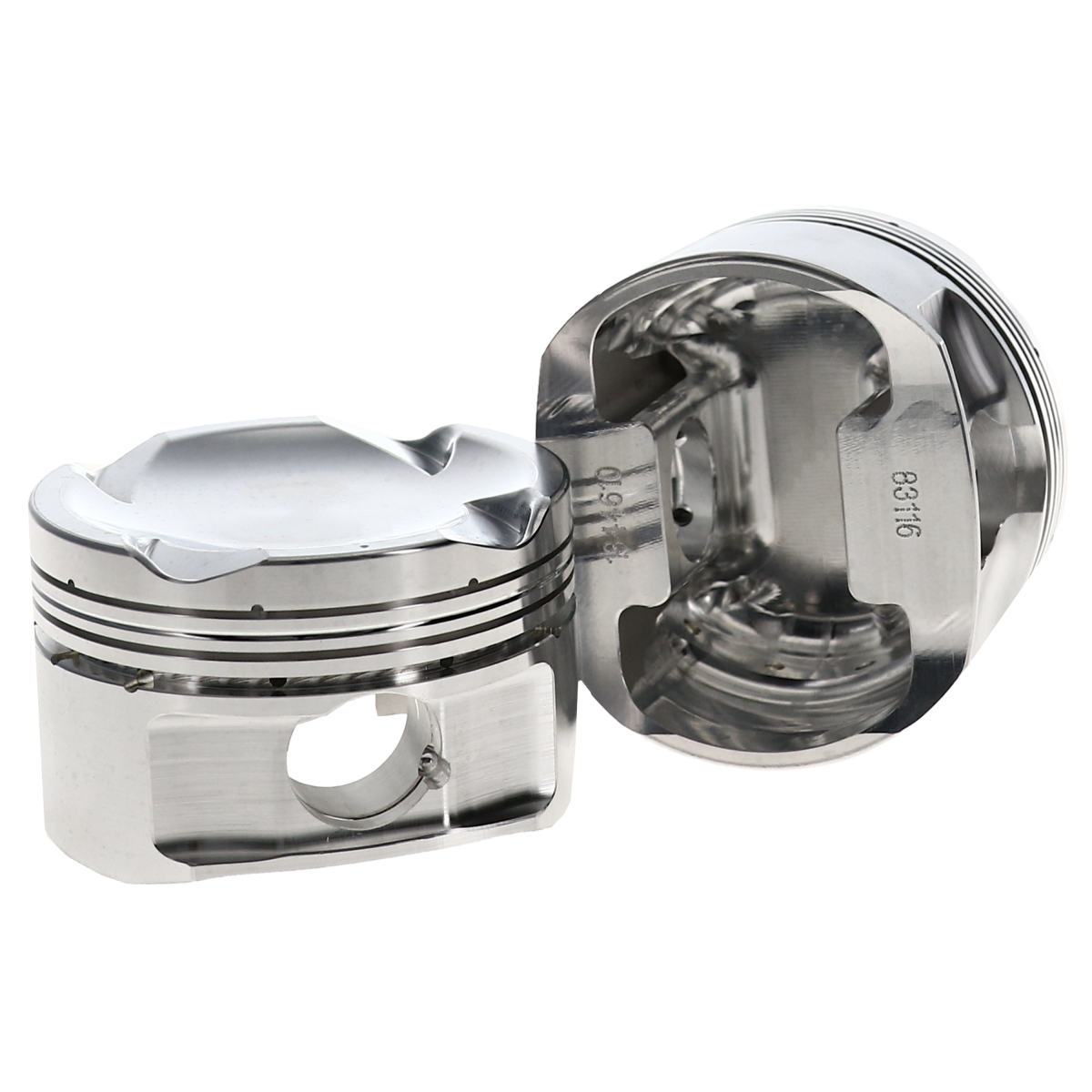

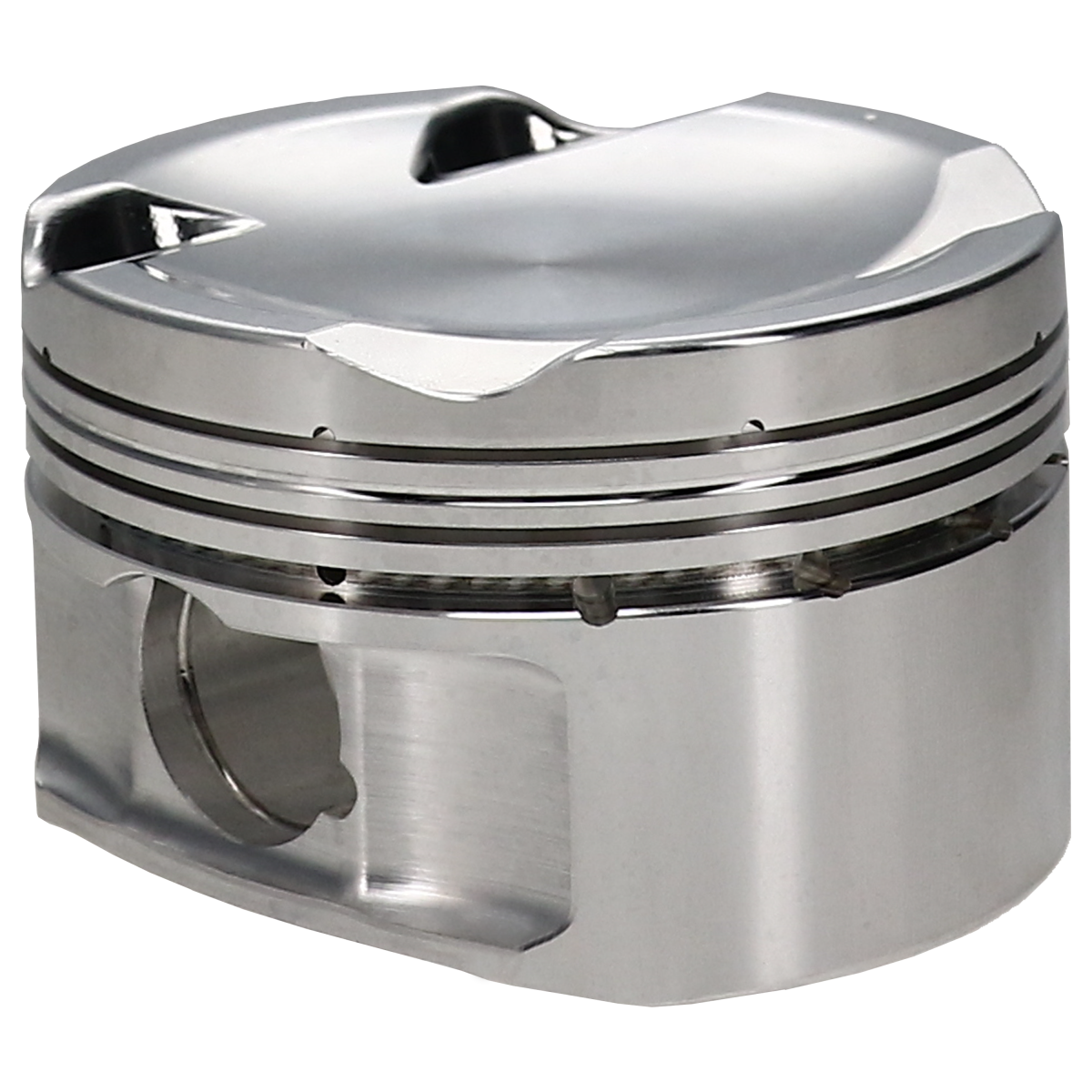

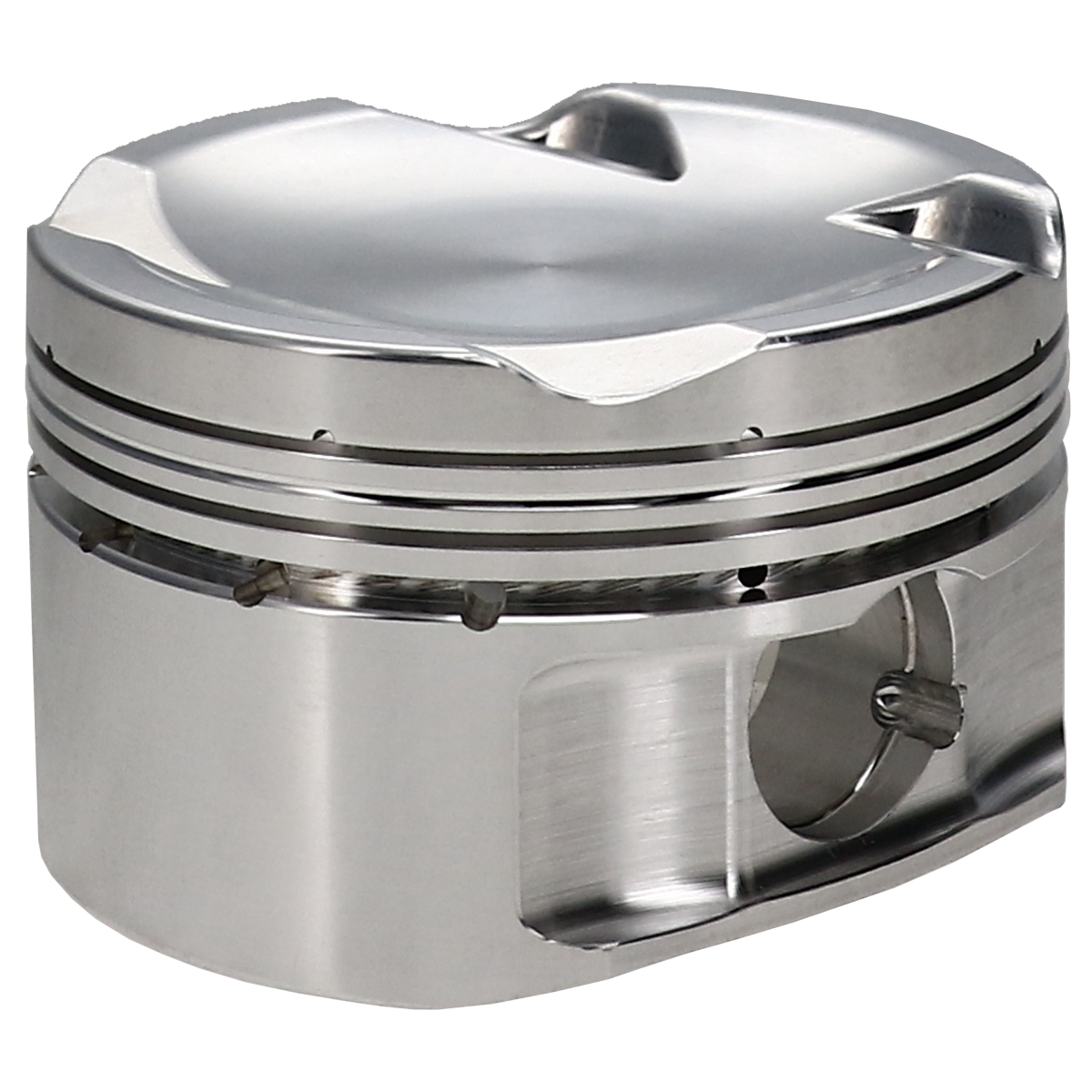

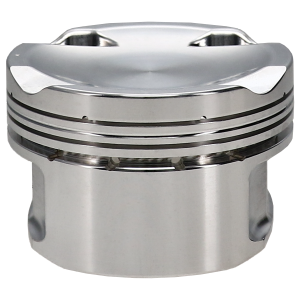

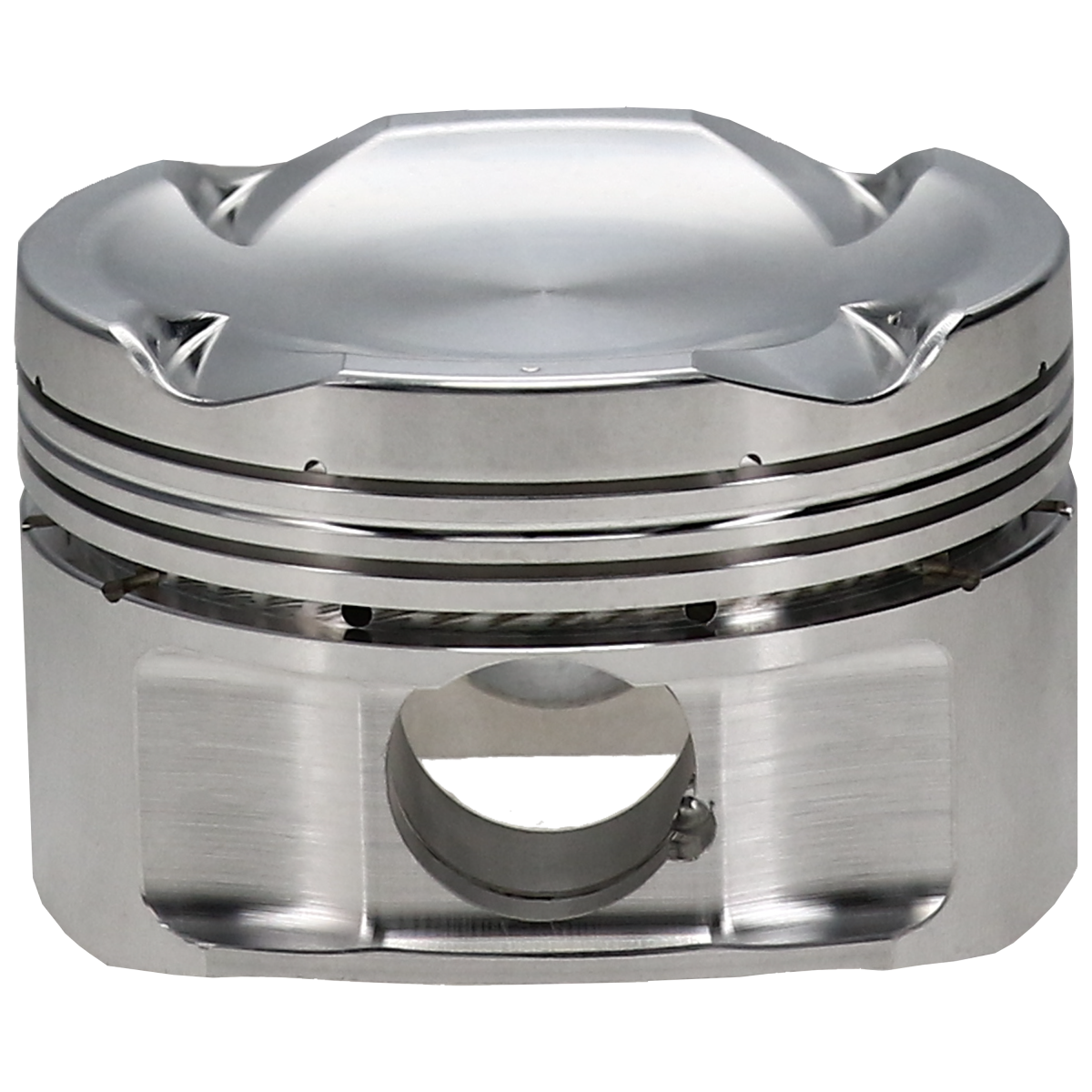

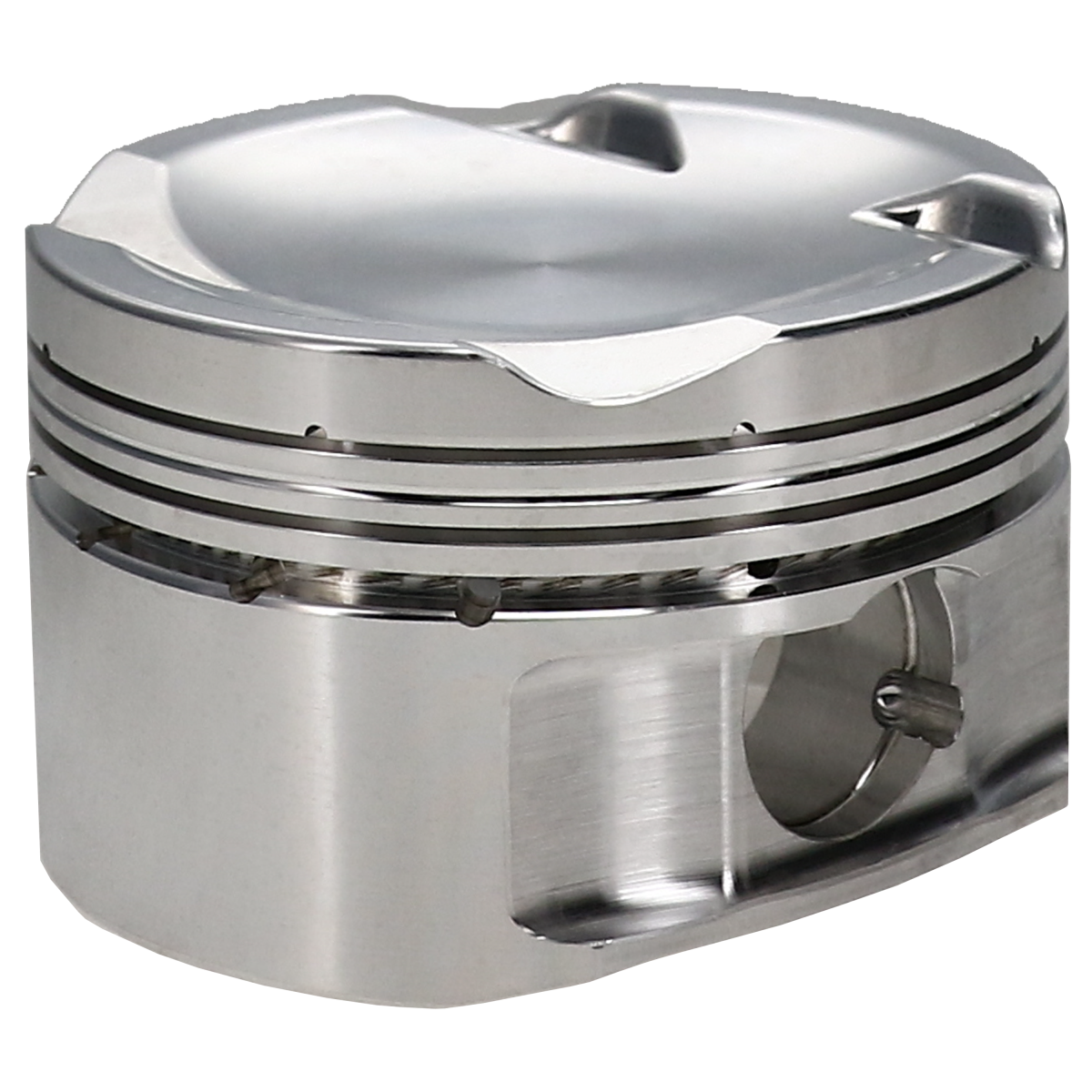

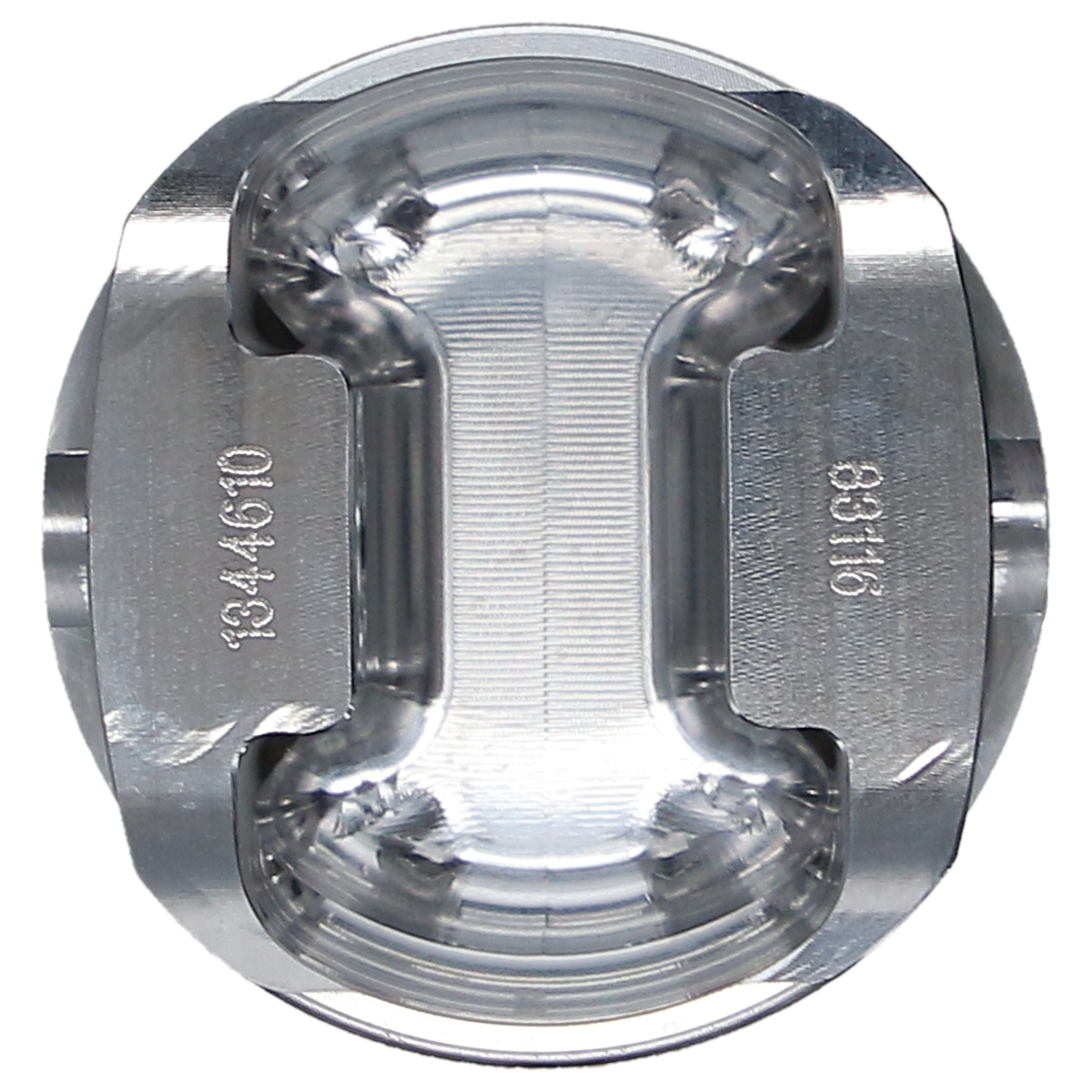

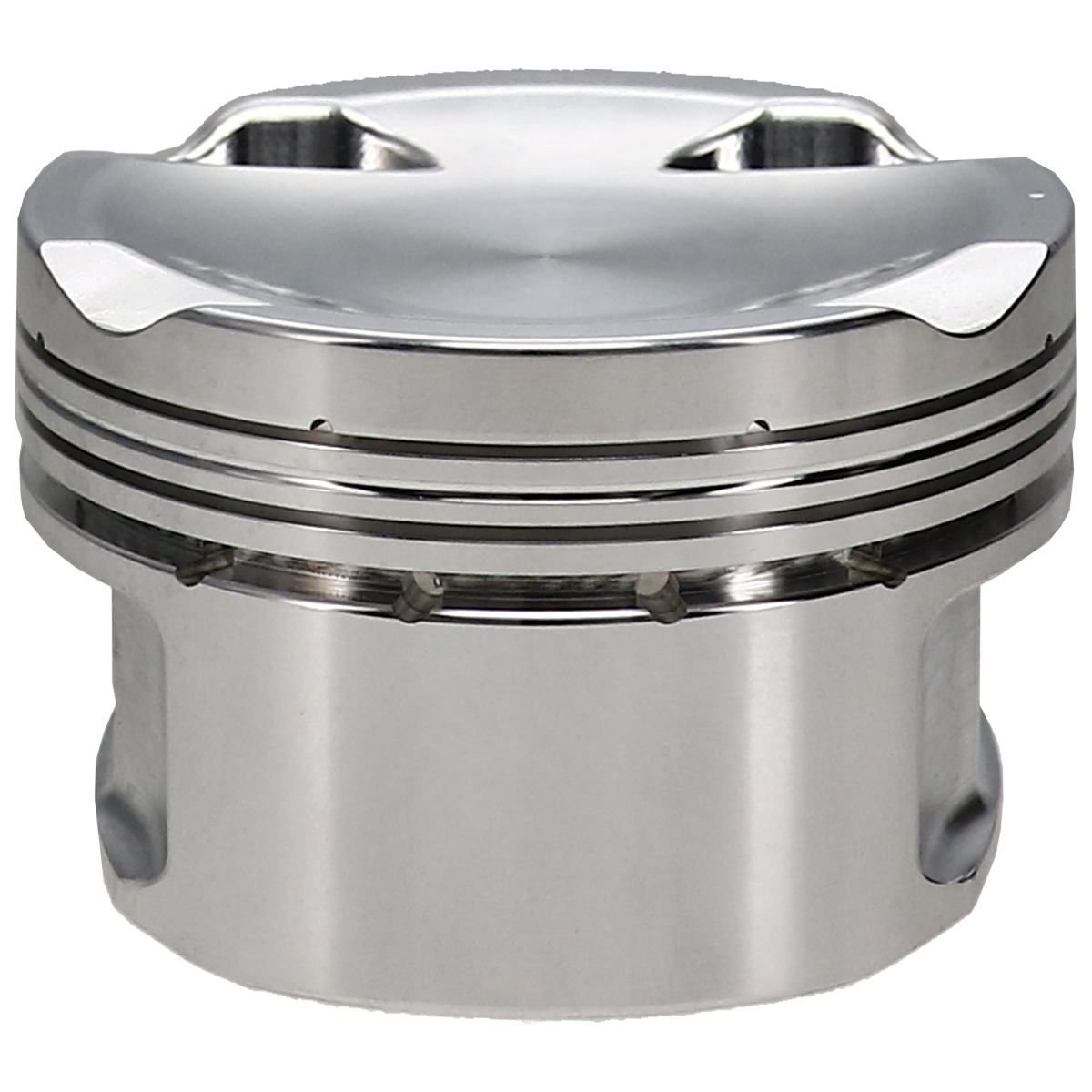

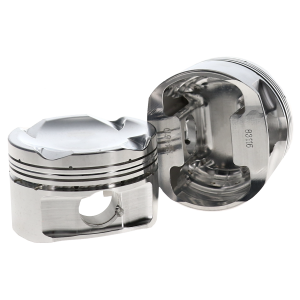

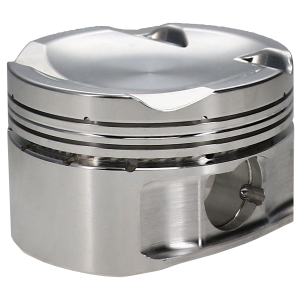

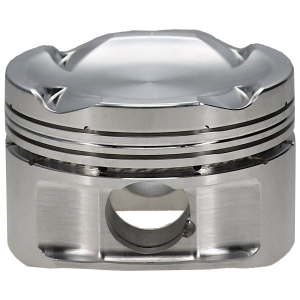

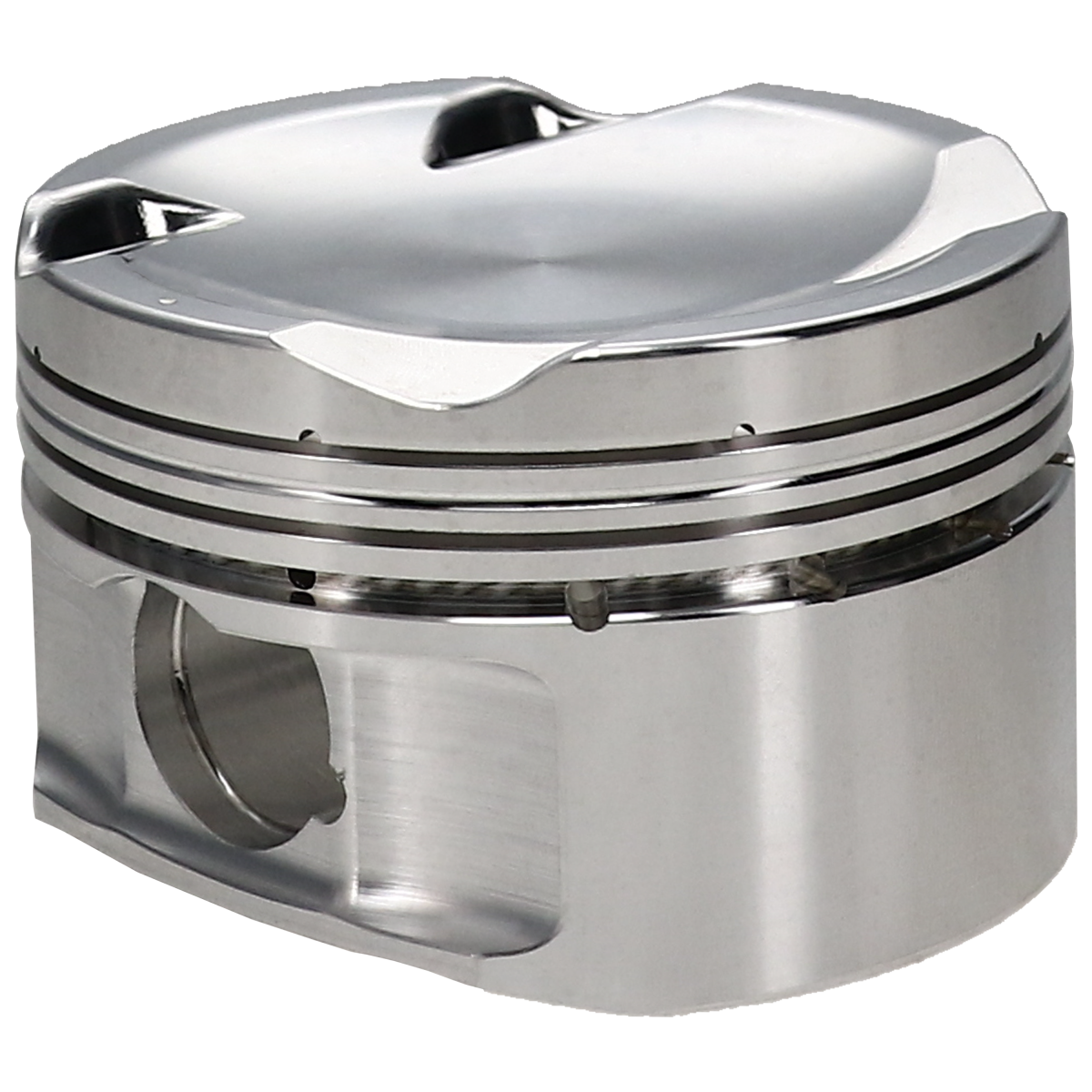

Diamond Piston 83116-6 BMW S58B30 Series
BMW S58B30
83116-6
Pin Fitted; Moly Coated Skirts; 3D Dome & Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,197.30
Description
| Product Specifications | Details |
|---|---|
| Item Number | 83116-6 |
| Engine Make | BMW |
| Bore | 84.0mm |
| Stroke | 90.0mm |
| Rod | 5.945 |
| Comp Height | 1.285 |
| Weight | call |
| Pin | .905 x 2.250 |
| CC | -16.0cc |
| Comp Ratio | 9.3 |
| Cylinder Head Chamber CC | OEM |
| Ring Thickness | 1.0mm x 1.2mm x 2.8mm |
| VP Intake Depth | 0.225 |
| VP Exhaust Depth | 0.200 |
| Cylinders | 6 |
| Barcode ID | |
| Class | DIA-ASC-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | BMW S58B30 |
| Pins Included | Y |
| Pin Part# | H9052250225C |
| Rings Included | Y |
| Ring Part# | 09-21-GNH08400 |
| Rails Included | N |
| Support Rail Part# | N/A |
| Locks Included | Y |
| Lock Ring Part# | 01-5130-12 |
| Country of Origin | USA |
Details
- 83116-6
- 83116-6
- Diamond Racing - Pistons
- New
Categories
- Pistons - BMW - S58B30 3.0L
Shipping Information
- Item Requires Shipping
- 14.0 lbs.
- W4.0000” x H11.0000” x L22.0000”
