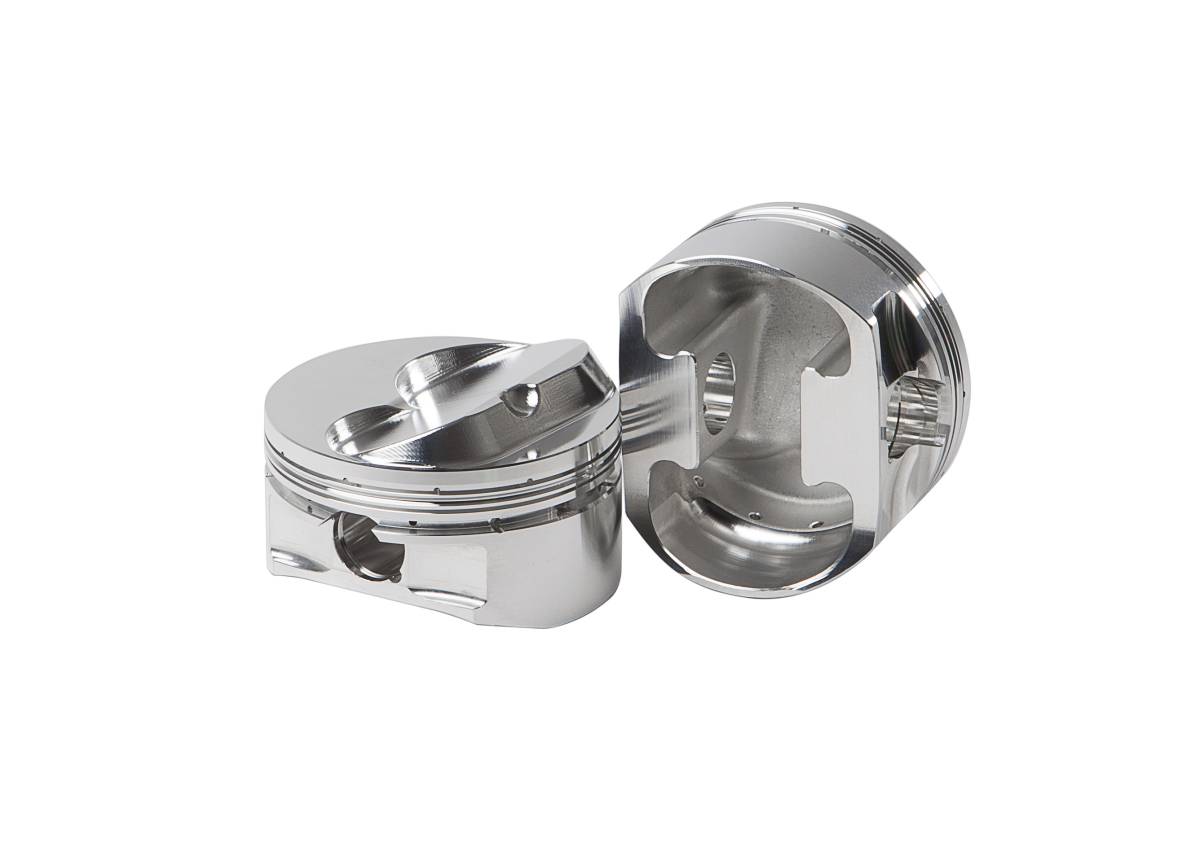

Diamond Pistons 11928-8 Small Block Chevy 23 Race Dome Series
Small Block Chevy 23 Race Dome
11928-8
Forced pin oilers from the oil ring; Pin Fitted; Later Gas Ports; 3D Dome & Pockets; Pins, Lock's & Support Rails (if required) included
Pricing:
$1,705.24
Description
| Product Specifications | Details |
|---|---|
| Item Number | 11928-8 |
| Engine Make | Chevrolet |
| Bore | 4.125 |
| Stroke | 3.750 |
| Rod | 6.000 |
| Comp Height | 1.125 |
| Weight | 477 |
| Pin | .927 x 2.750 |
| CC | 13.0cc |
| Comp Ratio | 14.5 |
| Cylinder Head Chamber CC | 64 |
| Ring Thickness | .043 x .043 x 3.0mm |
| VP Intake Depth | 0.320 |
| VP Exhaust Depth | 0.220 |
| Cylinders | 8 |
| Barcode ID | 686162205394 |
| Class | DIA-A-PSSK |
| Product Relations | Details |
|---|---|
| Product Line | Small Block Chevy 23 Race Dome |
| Pins Included | Y |
| Pin Part# | G9272750155 |
| Rings Included | Y |
| Ring Part# | 09224125 |
| Rails Included | Y |
| Support Rail Part# | 019010120-8 |
| Locks Included | Y |
| Lock Ring Part# | 015104-32 |
| Country of Origin | USA |
Details
- 11928-8
- 11928-8
- Diamond Racing - Pistons
- New
Categories
Shipping Information
- Item Requires Shipping
- 18.0 lbs.
- W5.0000” x H12.0000” x L28.0000”
